Advantage Four-Section ECM Oil-Fired Water Boiler Less Burner and Less Tankless Chimney

Boiler Designed with ASME Safety Relief Valve

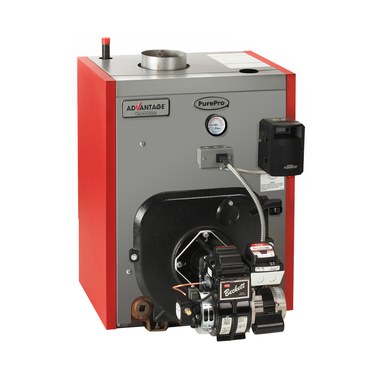

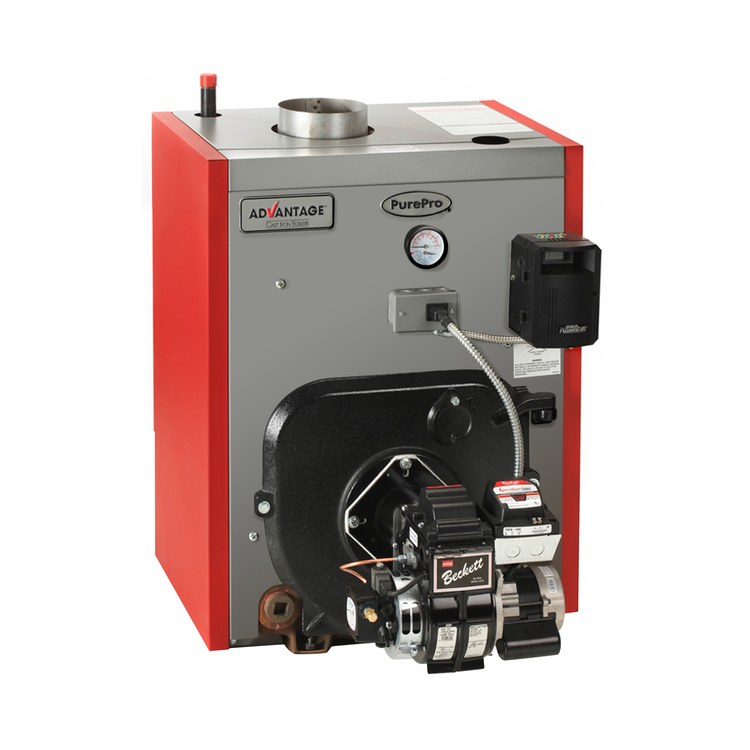

PurePro Advantage Oil-Fired Boiler is a residential, cast-iron, oil-fired water boiler designed for installation with a standard chimney. The four-section AO-4E model has an input capacity of 168K BTU, a 7" diameter flue collar, and an 87 percent AFUE efficiency. The installer-ready, post-purge control Advantage works with a Beckett AFG or Carlin burner, and comes standard with a Taco 007e ECM High Efficiency Circulator Pump and the Fuel Smart HydroStat 3250. The HydroStat 3250 combines temperature limit control, LWCO and boiler reset in one easy-to-use control. This model does not include a burner or front-mounted tankless coil.

• 168K BTU
• AFUE: 87.0 percent
• Dimensions: 22-3/8" L (front to back) x 24-1/2" W x 31-1/2" H
• Rugged wet-base heat exchanger design
• Less tankless coil
• Cast iron burner swing open door
• Post-purge control burners
• Three-prong quick disconnect for easy service
• Attractive split jacket removes easily for servicing
• Taco 007e ECM High Efficiency Circulator Pump
• Barometric damper
• ASME safety relief valve
• Fuel Smart HydroStat 3250 control
• Optional outdoor reset with sensor part #48-140
