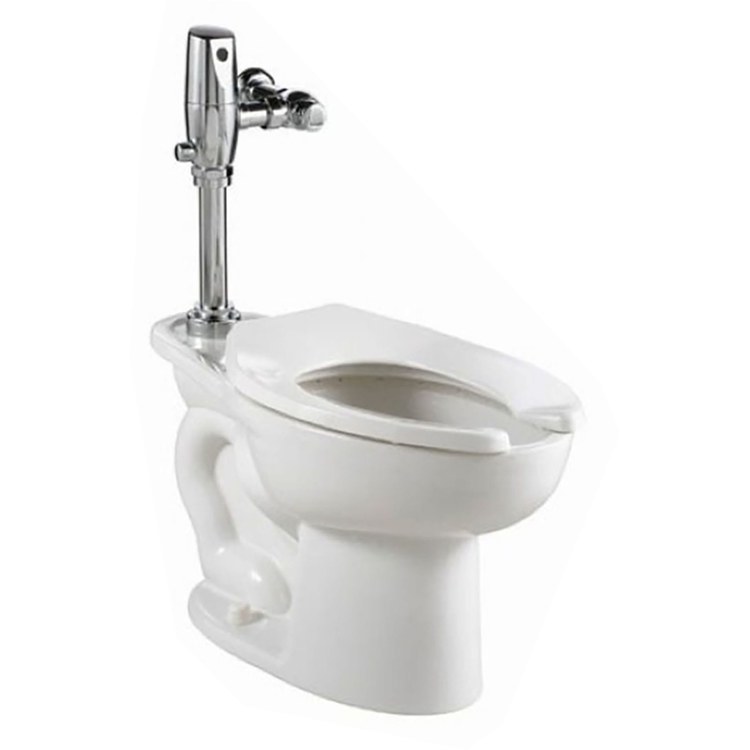

Ideal for high-use commercial applications, this Madera FloWise floor-mount toilet system features an exposed top spud bowl with an ADA-accessible 16-1/2" rim height and a Selectronic exposed battery-operated flush valve. This high-efficiency toilet uses powerful, direct-fed siphon jet action and only 1.1 gallons per flush.
The toilet has an elongated bowl made of high-gloss vitreous china, a condensation channel, a 1-1/2" inlet spud, a fully-glazed 2-1/8" trapway, and a 10" x 12" water surface area. Fits either a 10" or 12" rough-in. Powered by a factory-installed CR-P2 lithium battery, the Selectronic electronic flush valve features a self-cleaning piston with integral wiper spring for fewer clogs, a universal proximity sensor for hands-free operation, state-of the-art electronics to prevent ghost flushing, and a mechanical override button that flushes the toilet without power.
The flush valve also has chemical-resistant EPDM seals for extended life and can be installed left or right handed. System includes bowl, flush valve, inlet spud, bolt caps with retainers, a pre-installed lithium battery, 1" IPS angle stop with backflow protection and vandal-resistant cap, 1" sweat solder kit with cover tube and wall flange, and 1-1/2" high back pressure vacuum breaker, spud coupling, and flange. Toilet seat is not included and sold separately.
| Brand | American Standard |
|---|---|
| Number of Pieces | 1 |
| Product Type | Selectronic High Efficiency Electronic Flush Valve |
| Finish | White |
| Bowl Shape | Elongated |
| Height | 33IN |
| Flush Rate | 1.1GPF |
| Rough-In | 10-12IN |
| Material | Vitreous China |
| Mounting | Floor Mount |
| Trapway | Fully Glazed 2-1/8IN |
| Water Surface Area | 10x12IN |
| Flush Type | Siphon Action Jetted |
| Toilet Seat | Less Seat |
| Length | 28-1/4IN |
| Width | 14IN |
| Bowl Height | 16-1/2IN |
| Shipping Weight | 72.350 LBS |
