Urinal

American Standard 6561.017.020

Trimbrook Siphon Jet Urinal with Top Spud 1.0 GPF

Authorized Distributor

$420.04  / ea
Qty
truck image Ships directly to your store or location

This item cannot ship to CO

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

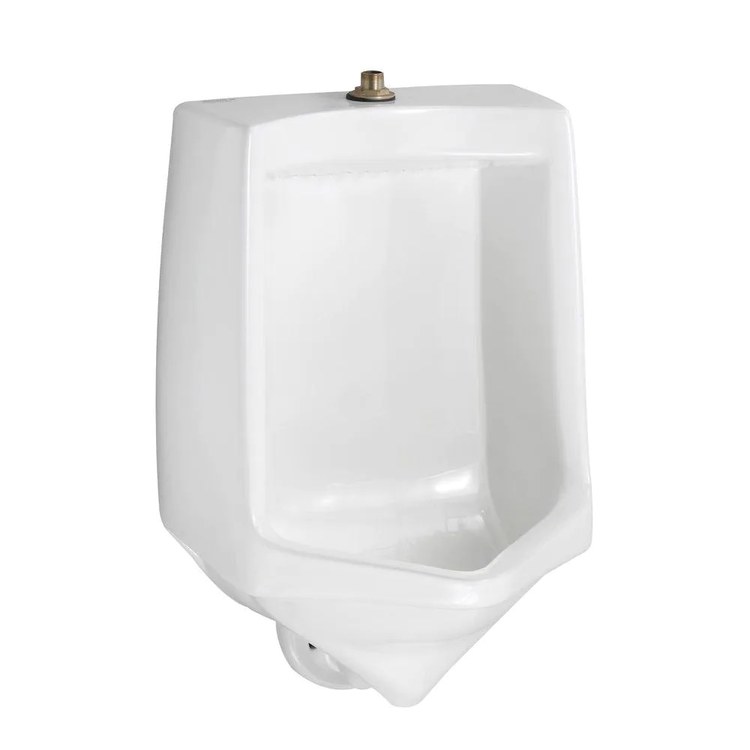

Low-Consumption Wall-Mount Urinal

This low-consumption, wall-mount Trimbrook urinal uses just 1.0 gallons per flush to help save on water usage. The urinal's features include a flushing rim, siphon-jet flush action for effectiveness, and extended sides for privacy. Its versatile design suits both traditional and casual commercial environments. The urinal comes with two wall hangers. The flush valve is not included and is sold separately.
  • 1.0 gpf
  • Dimensions: 14" L (front to back) x 17-1/2" W x 26-3/4" H
  • Top spud
  • Material: Vitreous china with conventional glaze
  • 1-1/4" inlet spud
  • Outlet connection threaded 2" inside (NPTF)

BrandAmerican Standard
Flush Rate1.0GPF
FinishWhite
Spud TypeTop
Spud Size3/4IN
Product TypeSiphon Jet
ADA CompliantYes
MaterialVitreous China
MountingWall Mount
Outlet Size2IN
Length13-13/16IN
Width17-1/2IN
Height26-3/4IN
Shipping Weight73.000 LBS
