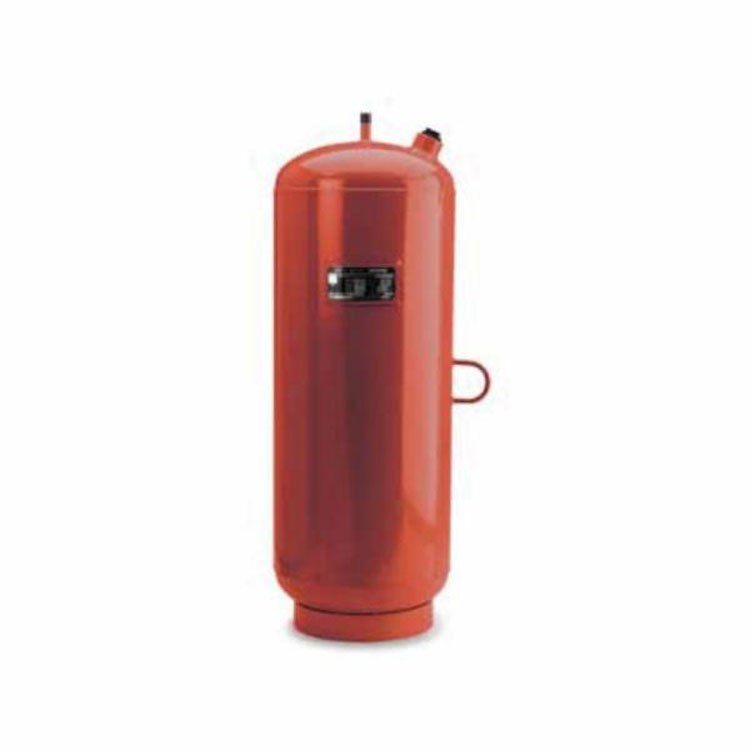

Expansion Tank

Amtrol-Worthington AX180

Expansion Tank Extrol Head & Shell 90 Gallon 125 Pounds per Square Inch Gauge 1" NPTM AX180 ASME for Closed Non-Potable Hydronic Heating and Chilled Water Systems

Authorized Distributor

Amtrol-Worthington
Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.

Amtrol hydronic expansion tanks are for use in closed, non-potable hydronic heating and chilled water systems. Available in diaphragm, full acceptance and partial acceptance bladder designs, all Extrol expansion tanks are made in the USA at our ISO 9001: 2008 registered facilities. ASME tanks meet all Section VIII, Division I standards.

  • 12 psig factory precharged
  • Industries thickest fixed butyl/EPDM diaphragm
  • 1 in MNPT malleable iron center system connection
  • Schrader valve with EPDM seat air valve
  • Without saddle

BrandAmtrol-Worthington
Product TypeHead and Shell
Tank Capacity90GAL
Pressure125PSIG
Inlet/Outlet Connection1IN NPTM
Part NumberAX180
StandardASME
Precharge Pressure12PSIG
Temperature240DEG F
Diaphragm MaterialHeavy Duty Butyl/EPDM
MaterialSteel
ApplicationClosed, Non-Potable Hydronic Heating and Chilled Water Systems
Length54IN
Width24IN
Height24IN
Shipping Weight242.000 LBS
