Expansion Tank

Amtrol-Worthington 109

Expansion Tank Fill-Trol Automatic Fill 2 Gallon 100 PSIG 1/2 Inch NPT 109 for Closed Loop Hydronic Heating and Radiant Heating Applications

Authorized Distributor

$167.01  / ea
Qty
truck image Ships directly to your store or location

This item cannot ship to CA

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

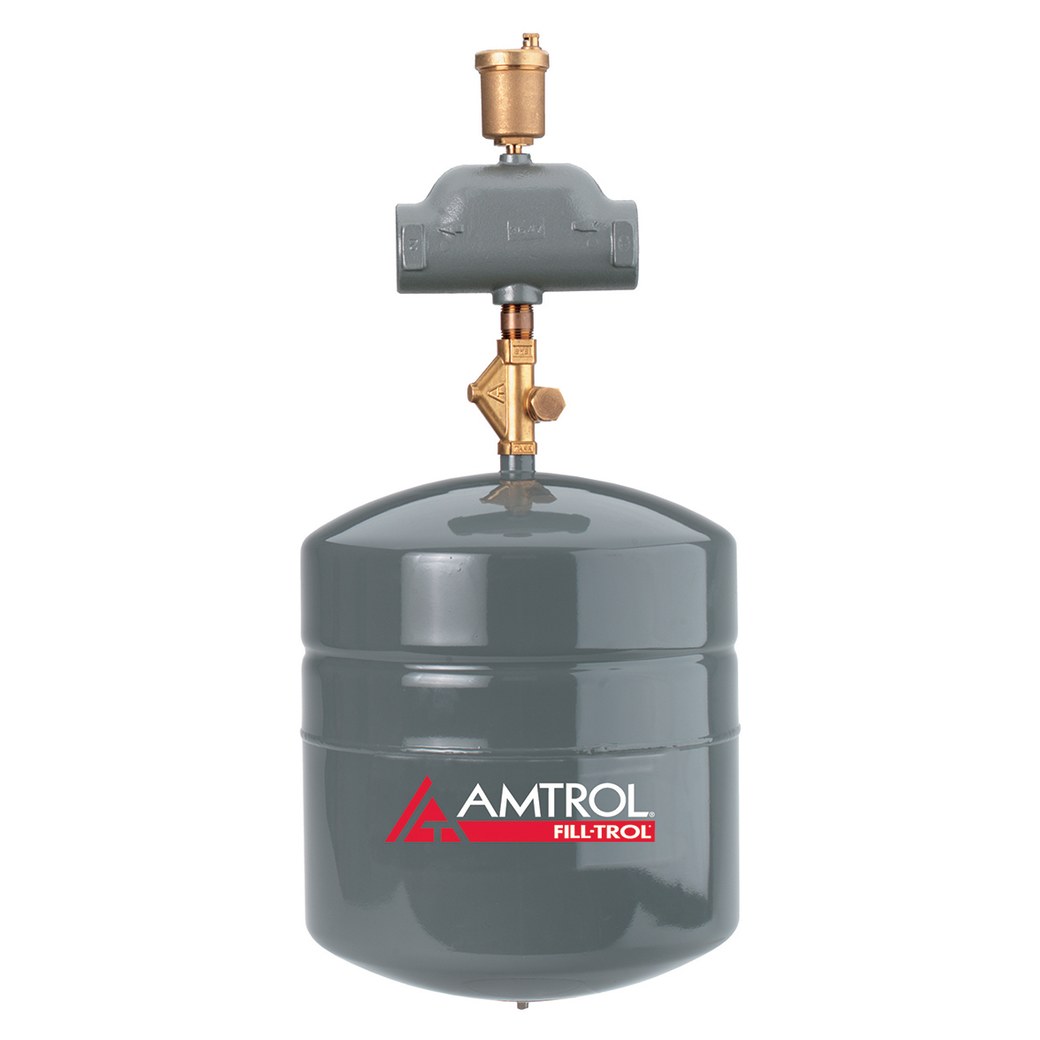

  • The AMTROL FILL-TROL system consists of a specially adapted EXTROL pre-pressurized, diaphragm-type expansion tank and the FILL-TROL, a specially designed, automatic, fill valve
  • Accepts expanded water as system temperature rises to reduce pressure build-up
  • Eliminates need for a separate, automatic fill valve
  • Fully adjustable
  • Helps reduce energy consumption and reduces system wear
  • Automatic air vent eliminates system air
  • Air purger separates air from water
  • System connection sets the point of no pressure change
  • Water-tight reservoir for expanded water
  • Sealed air cushion-factory precharged and 100% tested
  • 12 psig factory precharged
  • Strong, deep-drawn steel tank
  • Projection welded air stem maintains precharge setting
  • Tank pressure controls system fill
  • Spring-loaded check valve

BrandAmtrol-Worthington
Product TypeAutomatic Fill
Tank Capacity2GAL
Pressure100PSIG
Inlet/Outlet Connection1/2IN
Connection TypeNPT
Part Number109
Precharge Pressure12PSIG
Temperature240DEG F
ApplicationClosed Loop Hydronic Heating and Radiant Heating Applications
Shipping Weight6.000 LBS
