Check Valve

Apollo 61-108-01-PR

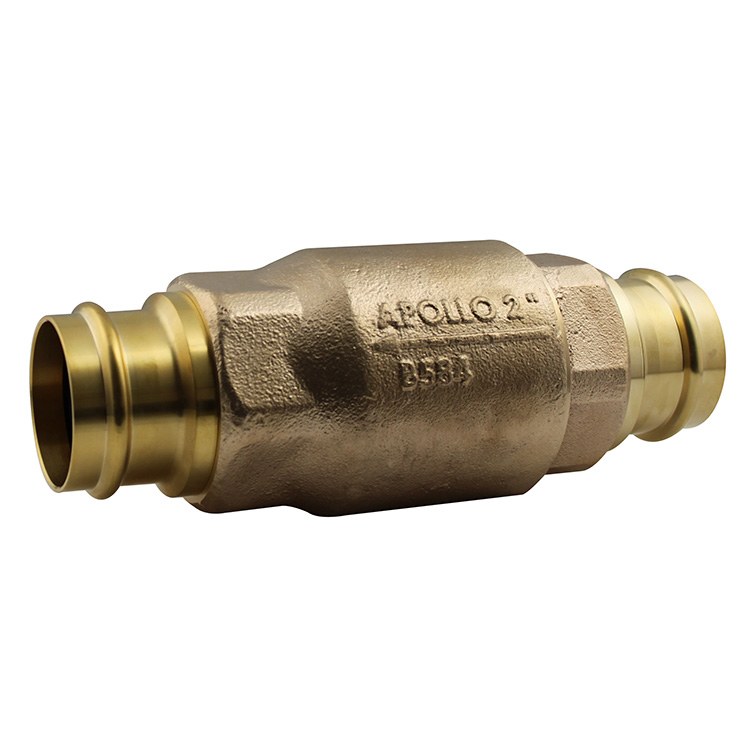

ProPress Model CVB 2" In-Line Check Valve

Authorized Distributor

Account required to order

The Apollo CVB Ball Cone check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA. Well-suited for a broad range of applications, including saturated steam and chemical service. This 2" valve may be installed in both horizontal and vertical flow with upward flow. Do not use for reciprocating air compressor service.

  • Cast bronze C84400 body
  • FNPT x FNPT
  • Spring actuated
  • Tight shut-off with liquid media
  • Flow straight-through design efficiency
  • RPTFE Ball Cone for chemical resistance
  • Maximum Pressure: 400 psi (2758 kPa), 125 psi (862 kPa) steam
  • Maximum temperature: 350 degrees F
  • Made in the USA
  • Canadian Registration Number 0C11218.5C

BrandApollo
Size2IN
MaterialBronze
Product TypeBall Cone
End ConnectionProPress
Seal MaterialRPTFE
Pressure400PSIG
Temperature400DEG F
Part Number61-108-01-PR
End to End Distance6IN
Shipping Weight8.000 LBS
