Ball Valve

Apollo 86A-103-01

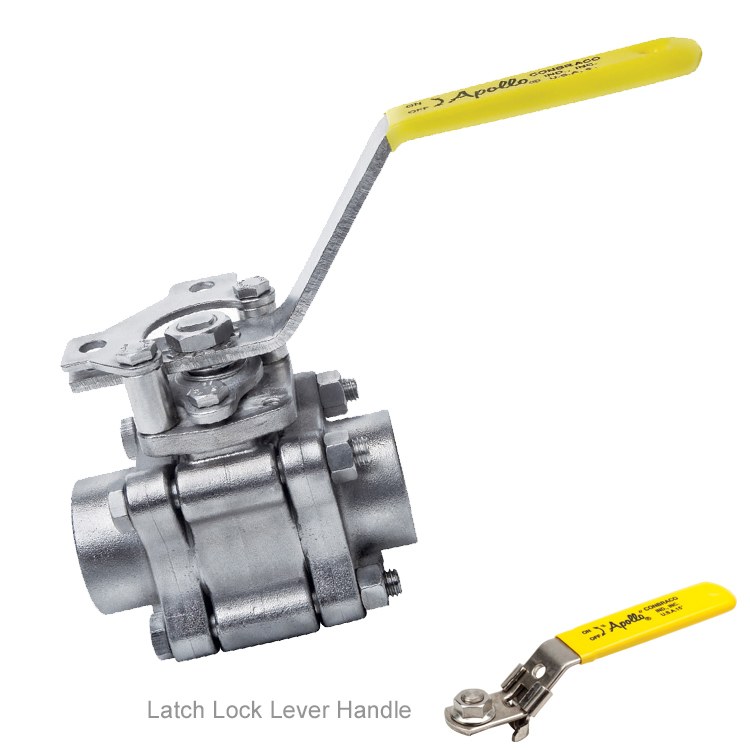

86A-100 Series 1/2" Three-Piece Female Full Port Stainless Steel Ball Valve

Authorized Distributor

$450.25  / ea
Qty
truck image Ships directly to your store or location

This item cannot ship to CA

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Perfect for Stopping the Flow of Water or Gas.

The Apollo 86A-100 Series Three-Piece, Full Port Ball Valve features stainless steel construction with a standard lever handle. Rated for 1500 CWP (psig) and 150 psig saturated steam. Features female NPT threads for use with male threaded pipes. Vacuum service to 29 inches Hg. This 1/2" valve is MSS SP-110, NACE MR1075 (2000), and MR0103 (2012) compliant.
  • Three-piece construction with enclosed fasteners
  • Full port
  • Stainless steel trim and hardware
  • Swing-out center section
  • Pressure balanced solid ball
  • Compression controlled RPTFE gaskets
  • Anti-blowout one piece bottom entry stem
  • Two-position locking
  • Adjustable multi-piece PTFE "V" style packing
  • Fully machined ISO 5211 mounting
  • Cast bosses on the center section and end caps for bleed and drain ports

BrandApollo
Product Type3-Piece
Size1/2IN
End ConnectionFemale
MaterialStainless Steel
Port TypeFull Port
Pressure1500PSICWP
Handle TypeLever
Seal MaterialPTFE
End to End Distance2.80IN
Shipping Weight2.500 LBS
