Kickspace Heater

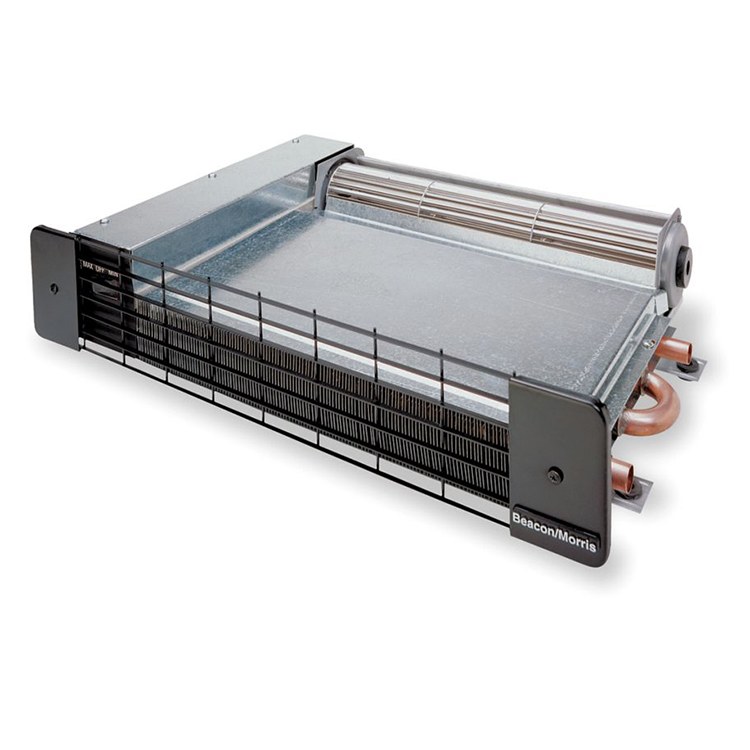

Beacon Morris K84

Kickspace Heater Twin-Flo FHW 3.44K BTU 12-3/4 x 19-1/4 x 4 Inch 115 Volt

Authorized Distributor

Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.

Twin-Flo III kickspace heaters are an ideal solution wherever space is limited to deliver a comfortable stream of warmed air at or near the floor level. This K84 model's compact construction requires minimal space for install under cabinets, in kitchens, bathrooms, foyers, and under stair risers and windows. The unique cross-flow design of the blower ensures even, consistent heat.

This unit is designed for use with forced hot water residential heating systems and is ideal for radiant systems with the use of a low-temperature aquastat designed to turn the unit on at `110 degrees F. Provides 3,440 BTU of heat and 103 CFM airflow. Not intended for use on one or two pipe steam systems. For gravity-fed systems, it is recommended that a separate circular pump be installed for the kickspace heater.

  • Dimensions: 12-3/4" long x 19-1/4" wide x 4" high
  • 3,440 BTU
  • 103 CFM
  • Motor (electric blower): 0.034 HP, 3200 RPM
  • 0.50 amp/30.7 watt/115 volt
  • Use with forced hot water heating systems
  • 1/2" nominal (5/8 O.D.) copper tube connections

BrandBeacon Morris
Product TypeFHW
BTU3.44K BTU
Size12-3/4x19-1/4x4IN
Voltage115V
Amperage0.5AMP
Frequency60Hz
Shipping Weight16.000 LBS
