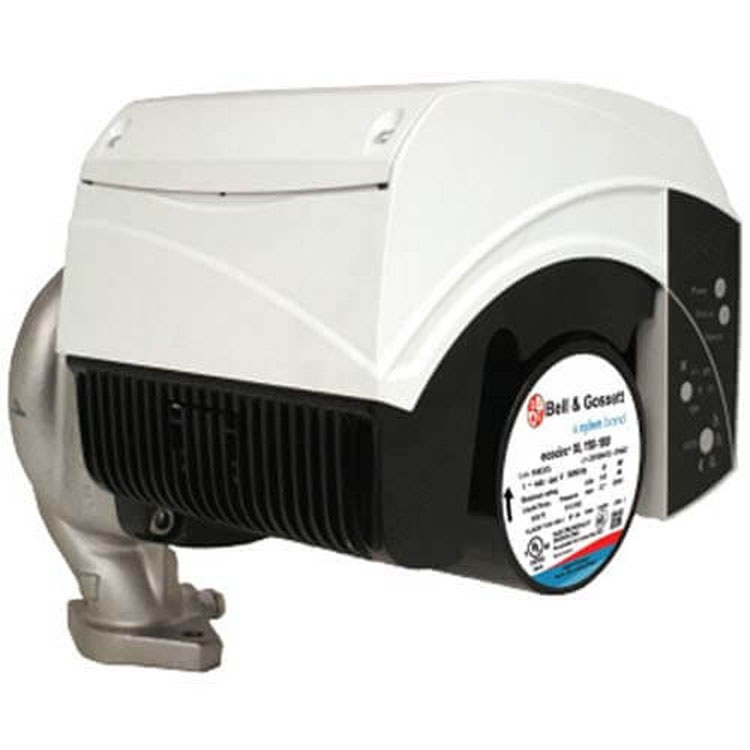

EcoCirc XL High-Efficiency Large Wet-Rotor, Cast-Iron Circulator Pump

Pump Employs ECM/PM Motor.

Bell and Gossett designed its EcoCirc XL pump with a highly efficient electronically commutated permanent magnet motor (ECM/PM Technology). The pump's cast iron body handles pumping water or a water/glycol mix in closed-loop hydronic heating and cooling systems.

The EcoCirc XL pump features three standard operating modes: constant speed, constant pressure control, and proportional pressure control. When functioning in night mode, the pump automatically reduces speed when a sudden change in fluid temperature occurs, typically resulting from a boiler operating in nighttime setback mode. Users can remotely monitor the EcoCirc XL from a building management system (BMS).

• Motor: 1 HP
• Voltage: 208-230 volts
• Pump body: cast iron
• Impeller: polyphenylene sulfide
• Shaft: AISI 431 stainless steel
• Rotor: permanent magnet
• Bearing: carbon sleeve
• Gasket/O-ring: EPDM
• All other wetted parts: AISI 304 stainless steel
• Motor type: electronically commutated motor/permanent magnet (ECM/PM)
• Motor insulation class: F
• Max. working pressure: 175 psi
• Min. working temperature: 14 degrees F (-10 degrees C)
• Max. working temperature: 230 degrees F (110 degrees C)
• Ambient temperature range: 32 degrees F - 104 degrees F (0 degrees C - 40 degrees C)
