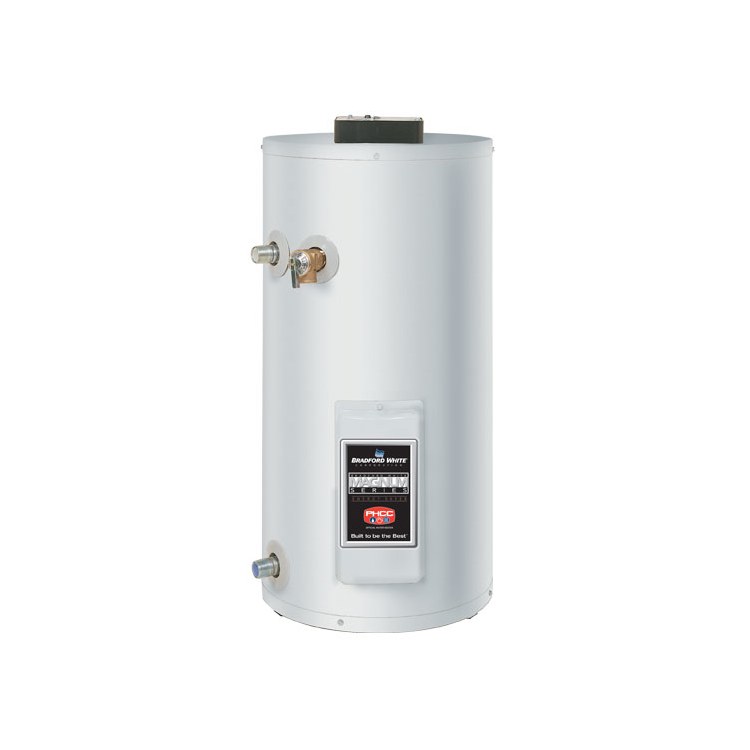

Water Heater

Bradford White LE120U3-1NAL

Water Heater ElectriFLEX LD Commercial Light Duty Utility Electric 19 Gallon 120 Volt 1.5 Kilowatt 1 Phase Steel 3 Year

Authorized Distributor

Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.

These small but powerful units fit in just about any location. Available from 6 to 20 gal, they fill the bill when space is at a premium and are field convertible for various wiring configurations.

  • Fully automatic thermostat control: Fast acting surface-mount thermostat with high limit energy cut-off (manual reset) for safety
  • Direct heat transfer with a single immersed element: Transfers heat directly and efficiently to the water
  • Vitraglas lining
  • Vitraglas is fused to the steel surface by firing at a temperature of over 1600 deg F
  • Insulation system: 1 in non-CFC foam insulation covers the sides and top of the tank, reducing the amount of heat loss
  • Results in less energy consumption, improved operation efficiencies and jacket rigidity
  • Water connection: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
  • Protective magnesium anode rod: Provide added protection against corrosion for long-term, trouble free service
  • Steel tank: Heavy gauge steel automatically formed, rolled and welded to assure a continuous seam for glass lining
  • Copper screw type immersion element
  • Hydrojet sediment reduction system
  • Field convertible

BrandBradford White
Product TypeCommercial Light Duty Utility
FuelElectric
Tank Capacity19GAL
Voltage120V
Wattage1.5kW
Phase1
Tank MaterialSteel
Inlet/Outlet Connection3/4IN
Warranty3 Year
Height24-3/4IN
Diameter18IN
Shipping Weight63.000 LBS
