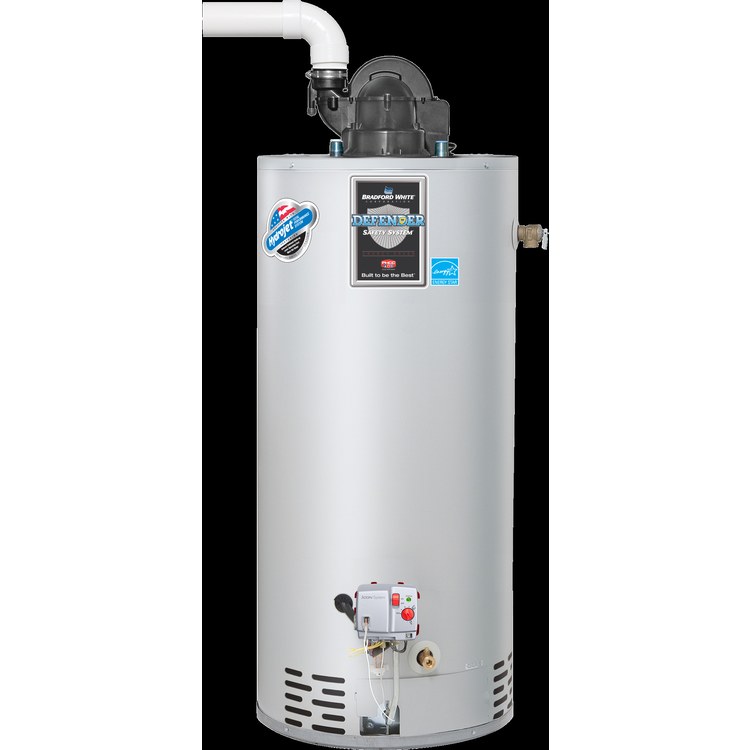

Water Heater TTW Residential Propane 48 Gallon 38K BTU Power Vent

Our Power Vent (TTW) models are power vented for positive exhaust. They offer greater installation flexibility with the ability to vent through a wall or roof, with either 2 or 3 in PVC, ABS or CPVC pipe. They offer an increased amount of hot water available at a usable temperature in less time than normal.

• Bradford White ICON System: Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during stand-by periods (120 VAC)
• Enhanced performance: Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
• Advanced temperature control system: Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
• Intelligent diagnostics: An exclusive green led light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
• Power vent water heater: Designed for installations where atmospheric units cannot be used, exhaust gases are vented under positive pressure directly out of the building through the roof or the wall
• Powerful blower motor: Our significantly quiet design has greater resistance to outside winds and the power to vent in many difficult venting situations
• Horizontal and vertical venting: PVC, ABS or CPVC
• Advanced ScreenLok technology flame arrester design: Flame arrester is designed to prevent ignition of flammable vapor outside of the water heater
• Flammable vapor sensor: Electronic sensor prevents burner operation if flammable vapors are detected
• Maintenance free: No regular cleaning of air inlet openings or flame arrester is required under normal conditions
• Sight window: Offers a view into the combustion chamber to observe the operation of the pilot and burner
• Factory installed Hydrojet total performance system: Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
• Vitraglas lining
• Insulation system: Non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
• Water connections: 3/4 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections
