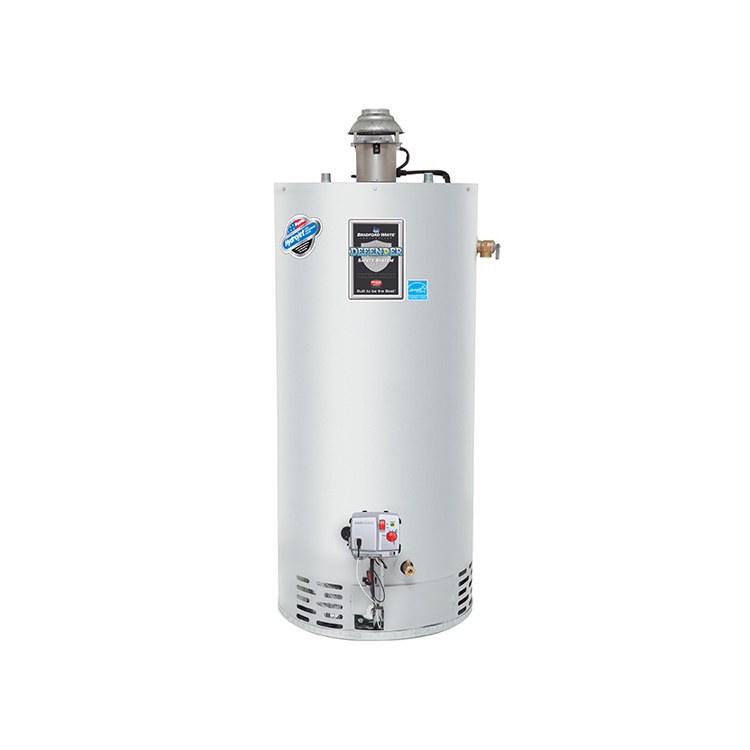

Water Heater Residential Short Natural Gas 40 Gallon 38K BTU Atmospheric Vent 6 Year

These models feature an automatic flue damper that helps to reduce stand-by heat loss. The flue damper, combined with additional insulation and heat traps, helps these units achieve one of the highest Energy Factor (EF) ratings of our atmospheric vent models.

• Bradford White ICON System: Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot, this results in savings of pilot gas during stand-by periods (120 VAC)
• Enhanced performance: Proprietary algorithms provide enhanced first hour delivery ratings and tighter temperature differentials
• Advanced temperature control system: Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels
• Intelligent diagnostics: An exclusive green led light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting
• Pilot on indication: Flashing green led provides positive indication that pilot is on
• Separate immersed thermowell: High strength advanced polymer composite thermowell provides isolation between electric temperature sensor and surrounding water, no need to drain the tank when removing gas valve
• Automatic flue damper: Reduces stand-by heat loss, resulting in less gas consumption, higher energy factor ratings, and improved overall efficiency
• Advanced ScreenLok technology flame arrester design: Flame arrester is designed to prevent ignition of flammable vapor outside of the water heater
• Flammable vapor sensor: Electronic sensor prevents burner operation if flammable vapors are detected
• Maintenance free: No regular cleaning of air inlet openings or flame arrester is required under normal conditions
• Sight window: Offers a view into the combustion chamber to observe the operation of the pilot and burner
• Factory installed Hydrojet total performance system: Sediment reducing device that also increases first hour rating of hot water while minimizing temperature build-up in tank
• Vitraglas lining
• Insulation system: Non-CFC foam covers the sides and top of the tank, reducing heat loss, this results in less energy consumption, improved efficiencies and jacket rigidity
• Pedestal base
