Shower Valve Trim Kit Features TempAssure Thermostatic Valve Cartridge

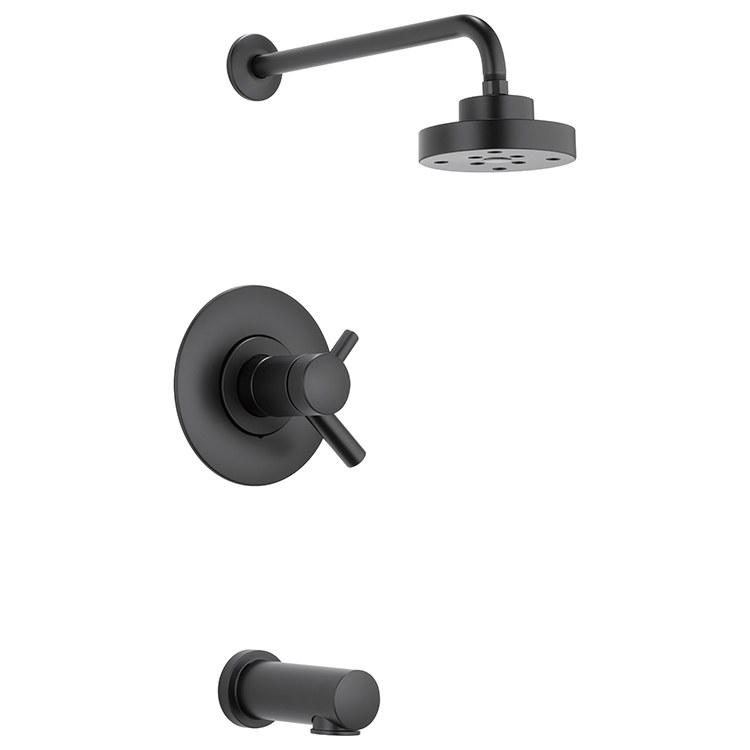

This Odin 7-1/2" diameter shower valve trim features easy lever handle operation with hot and cold temperature indicators and independent temperature and volume control. The single-function 5-3/8" diameter rainfall showerhead connects to a 16" shower arm and features H2Okinetic technology to provide a drenching shower experience while using less water. The bathtub spout has a 5-1/2" reach. features a pull-down diverter. The trim kit includes the escutcheon, a handle, showerhead, shower arm, and flange. This model has a Matte Black finish.
- Tub filler flow rate: 8.6 gpm
- Showerhead flow rate: 1.75 gpm
- TempAssure 60 series thermostatic valve cartridge
- Thermostatic wax element maintains outlet temperature to 3.6 degrees +/- F
- For use with MultiChoice Universal rough valve body (R60000 Series)
- Back-to-back installation capability
- Lever volume handle control
- Temperature adjustment dial
- Hot and cold temperature graphics
- Field adjustable to limit handle rotation into hot water zone
- All parts replaceable from valve front
- Adjusts for up to 1" wall thickness
- Finish: Matte Black
