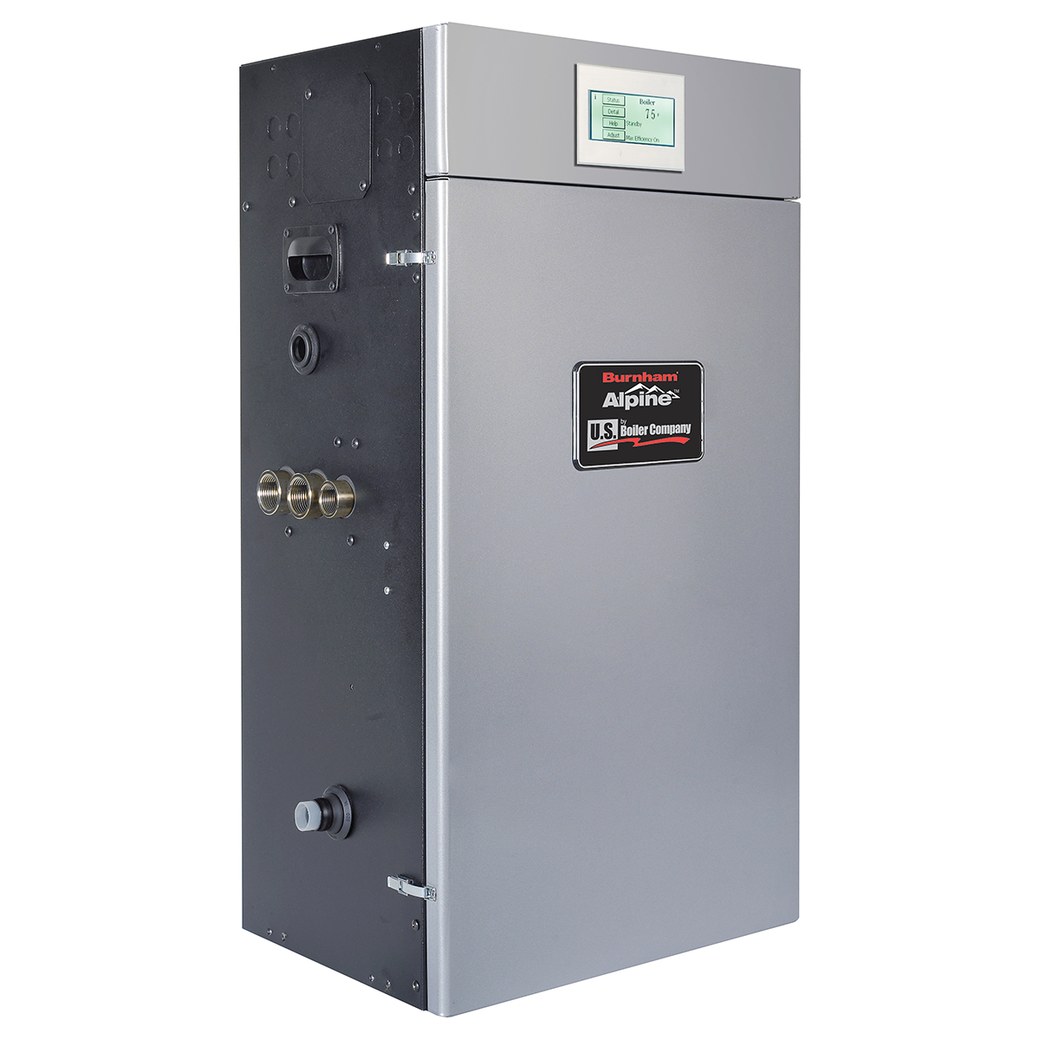

The Alpine Enhances Boiler and System Efficiency
Burnham designed the Alpine condensing boiler to utilize an ASME-certified stainless steel heat exchanger - compatible with natural or LP gas - to extract maximum heat from the combustion process. The Sage Control System enhances the heating system's efficiency and comfort.
The Alpine easily converts in the field from natural gas to LP gas with a simple turn of a screw - no special kits or tools required. It employs a standard CPVC/PVC venting option, has a 5-to-1 turndown with an outdoor reset, and a Polypropylene condensate trap with an integral float switch. The gas, water, and electric connections are on the boiler's left side. The Alpine is also stackable for modular applications. This model measures 23-15/16" long (front to back) by 16-11/16" wide by 32-3/16" high.
- 210K BTU
- AFUE: 95 percent
- Capacity: 1.7 gal
- Dimensions: 23-15/16" L (front to back) x 16-11/16" W x 32-3/16" H
- Direct vent appliance
- Nylon floor guides
- Pre-installed hanging bracket and wall mount kit included
- Gas, water, and electrical connections on left side of boiler
- Slide-out control panel and line voltage terminal strip
- Fuel source: natural or LP gas
- Sage 2.3 Control System
- Variable speed combustion blower
- 30 PSI safety valve relief and negative pressure gas valve
- Polypropylene condensate trap with overflow protection
- Stainless steel heat exchanger
Ships directly to your store or location
