Boiler Designed with a Flame Roll Out Switch

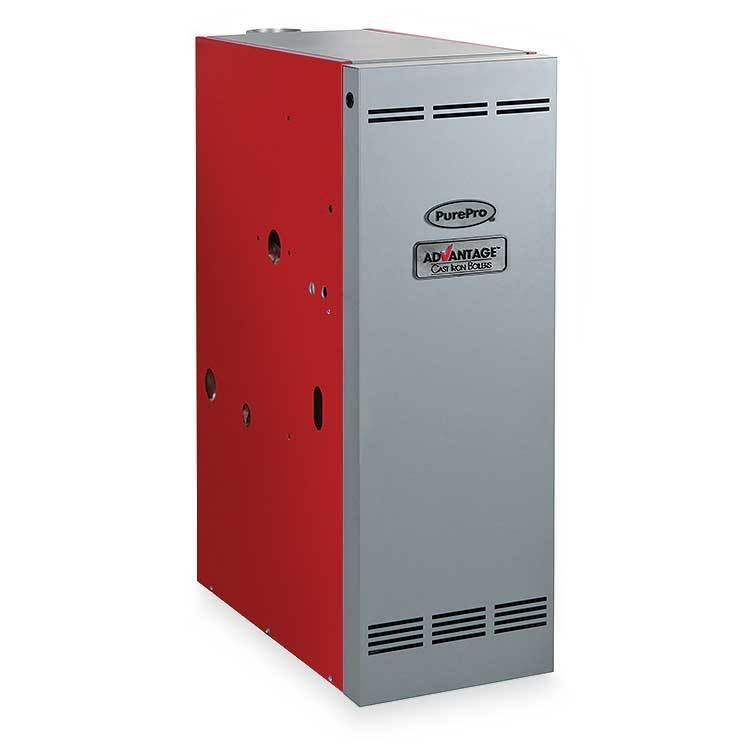

PurePro Advantage Natural Gas Water Boiler is a four-section, residential, cast-iron, gas-fired water boiler designed for atmospheric draft into a conventional chimney. The AG4-HN has an input capacity of 105K BTU, a 5" vent size, and an 84% AFUE efficiency. The Advantage comes standard with an intermittent ignition, a Taco 007e ECM circulator, and the HydroStat 3200 control.
- 105K BTU
- AFUE: 84.0 percent
- Dimensions: 31-7/12" L (front to back) x 15-5/12" W x 39-7/12" H
- Fuel source: natural gas
- Rugged cast iron heat exchanger design
- Electronic vent damper
- Integral draft hood
- Taco 007e ECM circulator
- ASME safety relief valve
- Supply manifold
- Temperature and pressure gauge
- Flame roll out switch (FROS)
- Fuel Smart HydroStat 3200 control
- Stainless steel burners
- Optional outdoor reset with sensor part #48-140
