Uninterrupted Hot Water Supply for Indirect Water Heaters

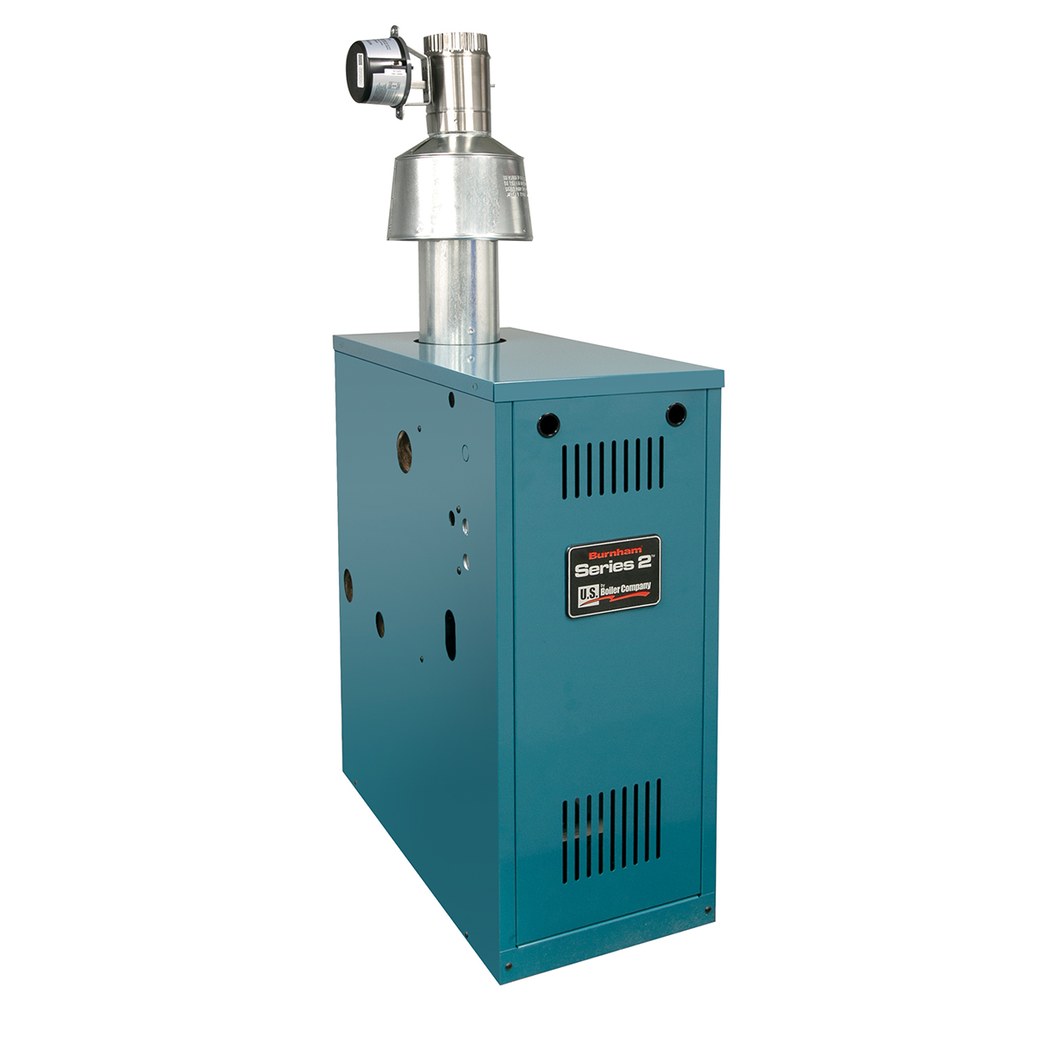

This Burnham Series 2 cast iron natural gas, chimney-vented water boiler has exceptional reliability and performance. The boiler has stainless steel precision burners and a continuous-retry spark ignition. It features easy-to-use three button operation, two pump relays for an additional heating zone or indirect water heater, and a pre-installed IDL-1200 low water cut off. The 3-gallon capacity boiler measures 27" long (front to back) by 16" wide by 62-1/2" high, including a 6" clearance from all breeching components.
- 103K BTU
- AFUE: 84 percent
- Capacity: 3 gal
- Dimensions: 27" L (front to back) x 16" W x 62-1/2" H (includes 6" clearance)
- Insulated powder-coated steel jacket
- Draft hood, damper, and harness
- Heavy gauge 1" base insulation
- Intelligent Hydronic Control - simple self-diagnostic control system
- Step-opening redundant gas valve
- Spark ignition with continuous retry
- Stainless steel precision burners
- User-friendly wiring with 120V J-box
- Low water cut off (IDL-1200) - pre-installed
- ECM Circulator
- Cast iron section assembly and supply manifold with safety relief valve tapping
