Natural Draft with Chimney Vent Boiler

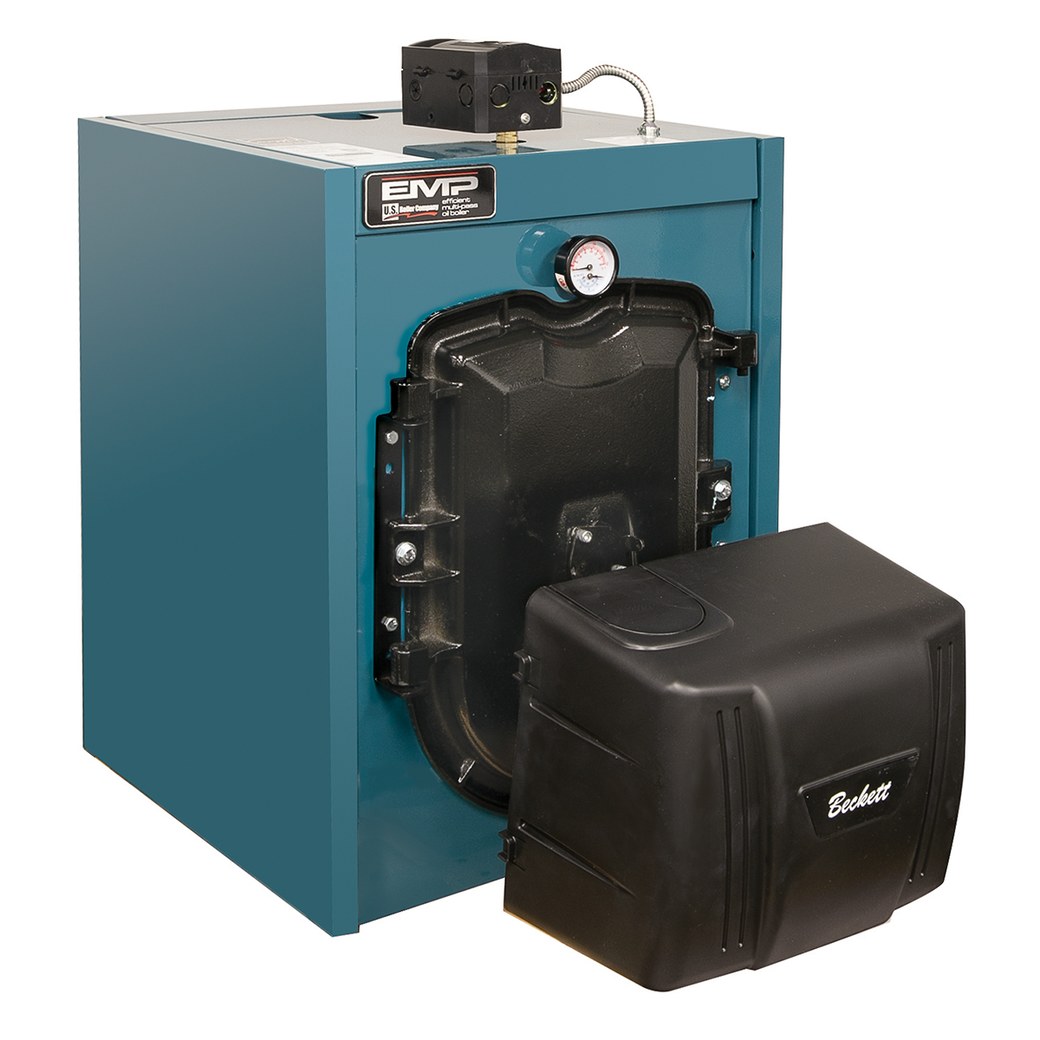

U.S. Boiler's EMP (Efficient Multi-Pass) is a residential, oil-fired, chimney-vented cast iron water boiler. It has an 87.0 percent AFUE rating - making it Energy Star certified - and an 84K BTU input rating. Its 3-pass cast iron sectional design makes it an optimal replacement boiler for homes with existing chimneys. U.S. Boiler designed the EMP for ease of service with its reversible swing-away burner door, no target wall, and removable rear plates for flue passage access. The EMP also has an integral, pre-installed low water cut-off (LWCO), part of the HydroStat 3250 hydronic control system. This EMP model measures 16-5/8" long (front to back) by 22-5/8" wide by 33" high.
- 84K BTU
- AFUE: 87 percent
- Dimensions: 16-5/8" L (front to back) x 22-5/8" W x 33" H
- Precisioned cast and machined sections
- Return blending manifold
- Powder-coated steel jacket
- 3" insulated jacket
- Reversable burner door
- Removable clean-out ports
- Mounted and wired controls
- 30 PSI relief valve and boiler drain valve
- Barometric draft regulator
- Circulator - Taco or Grundfos options
- Primary ignition controls - Beckett GeniSys 7565 or Carlin Pro-X 70200
- Burner not included - Beckett and Carlin provide viable options
