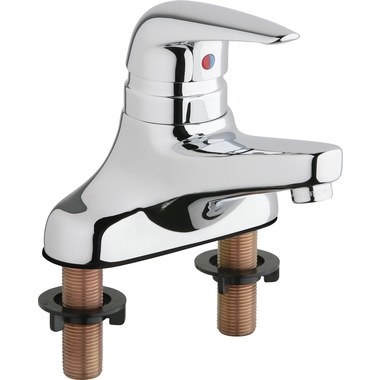

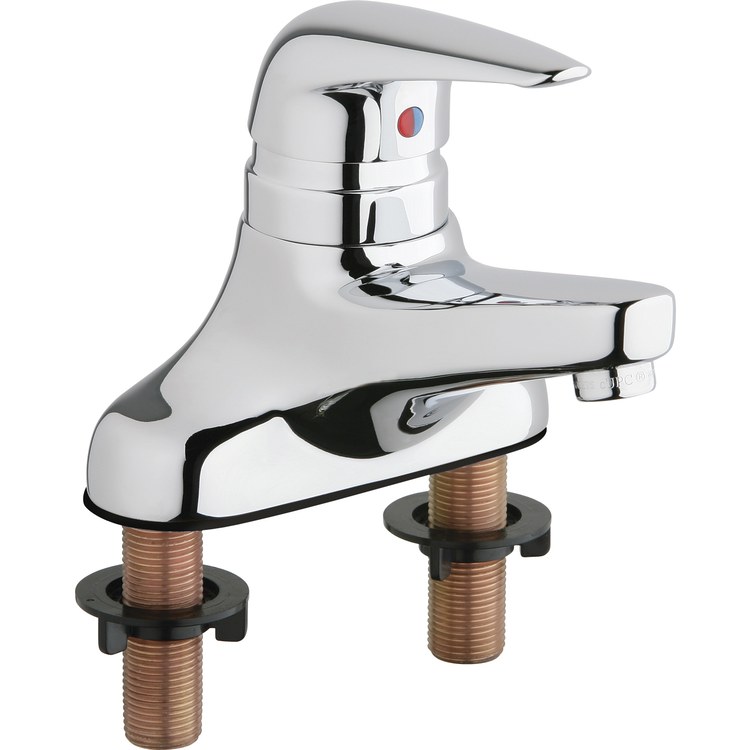

420 Series Deck-Mounted Manual Faucet with 4" Centers

Reliable Cast Brass Faucet

Chicago Faucets designed the 420 Series ABCP deck-mounted manual faucet with 4" fixed centers and a 4-5/8" spout reach. The faucet has a 1.5 gpm pressure-compensating laminar flow non-aerating outlet and a vandal-proof 4-1/4" lever handle. The faucet uses a ceramic operating cartridge with volume control and hot water limit stop and the ECAST design ensures durable brass construction. This model has a Polished Chrome finish.

• 4" fixed centers
• Spout reach: 4-5/8"
• Pressure-compensating laminar flow non-aerating outlet 1.5 gpm
• Vandal-proof 4-1/4" lever handle
• Ceramic operating cartridge with volume control and hot water limit stop
• ECAST design provides durable cast brass construction with total lead content equal to or less than 0.25 percent by weighted average
• 1/2" NPSM supply inlets for 3/8" or 1/2" flexible riser
• Operating pressure: 20-125 PSI
• Operating temperature: 40-140 degrees F (180 degrees max. during temporary high-temperature system flush)
• Finish: Polished Chrome
