Ara Monitor 14 Series Shower Trim

Designed with H2Okinetic and Monitor Technology

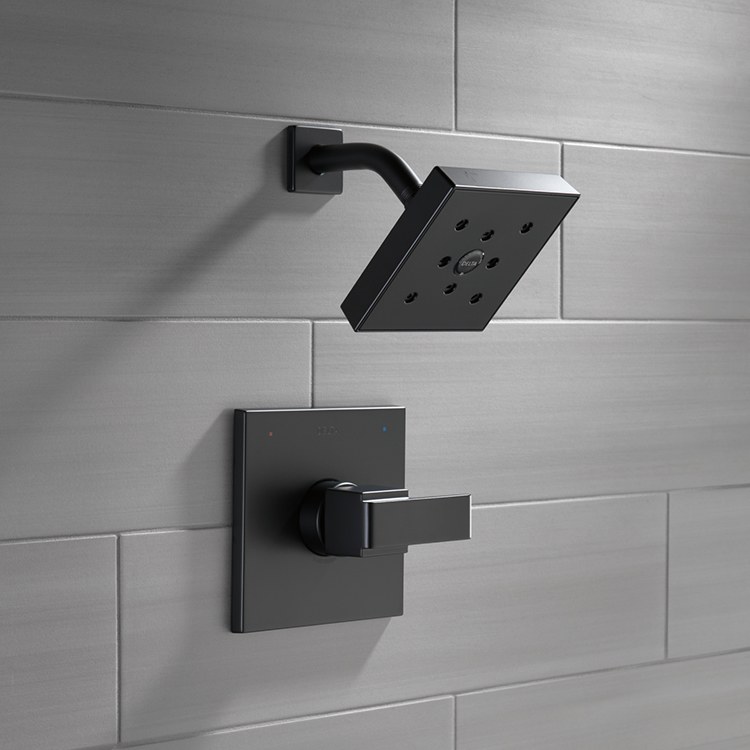

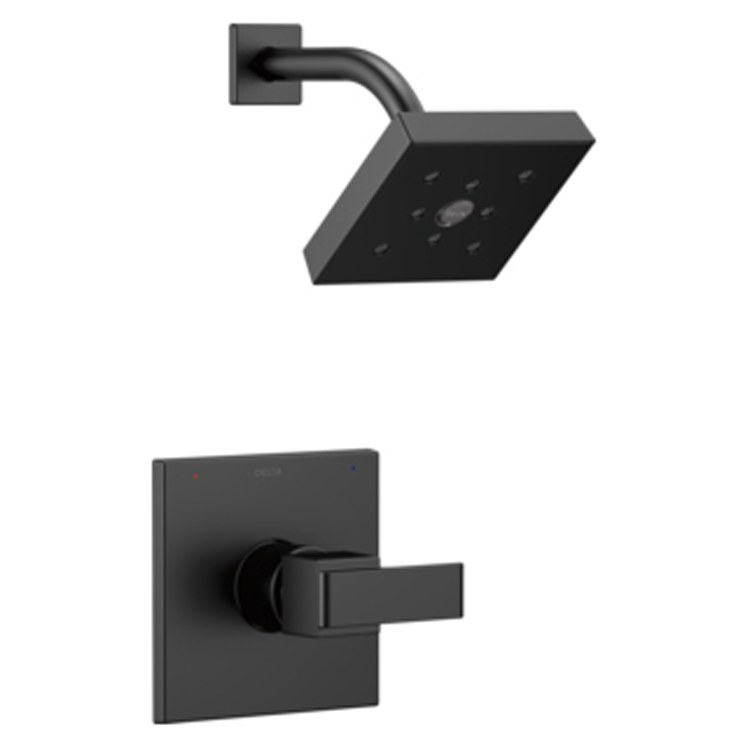

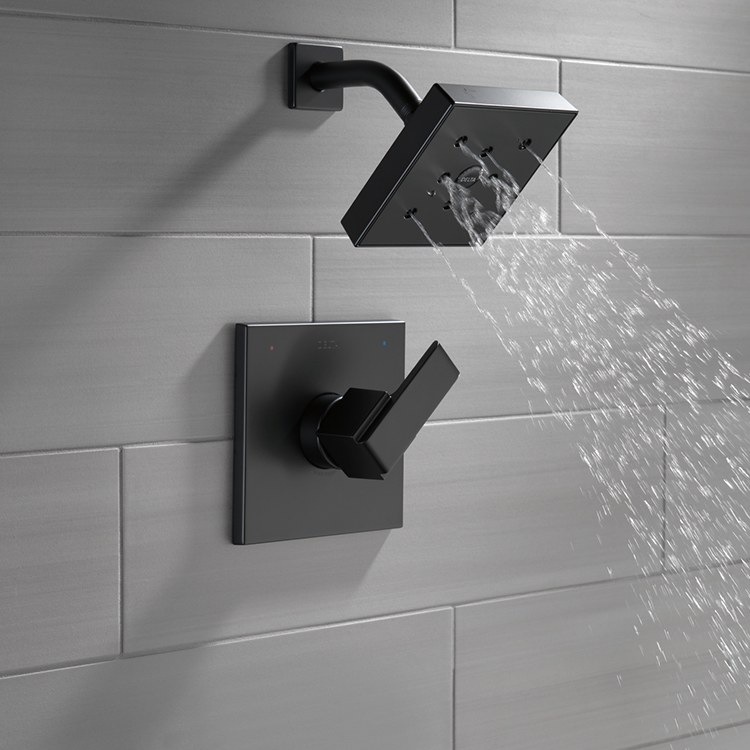

Delta designed this Ara shower trim kit with H2Okinetic and Monitor Technology. The kit has a 1.75 gpm flow rate, a 5-5/16" square showerhead, while the shower arm's horizontal length is 7". The escutcheon has a 6-1/2" diameter, red and blue pad print temperature indicators, and includes a metal lever handle. The handle rotates 120 degrees and controls the water temperature.

The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This model has a Matte Black finish.

• Flow rate: 1.75 gpm
• Showerhead dimensions: 5-5/16" square
• Shower arm length: 7"
• Escutcheon dimensions: 6-1/2" square
• H2Okinetic Technology
• Maintains balanced hot and cold water pressure
• Metal lever handle controls temperature
• Field adjustable means to limit handle rotation into hot water zone
• Maximum handle rotation: 120 degrees
• Red and blue pad print temperature indicators on escutcheon
• Order MultiChoice Universal rough R10000 series separately
• Finish: Matte Black
• ADA-compliant
• EPA WaterSense certified for 20 percent less water usage
