Lavatory Faucet

Delta 564-SS MPU -DST

Ashlyn Single-Handle Bathroom Faucet with Metal Pop-Up Drain

Authorized Distributor

$418.12  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Low-Flow Lavatory Faucet

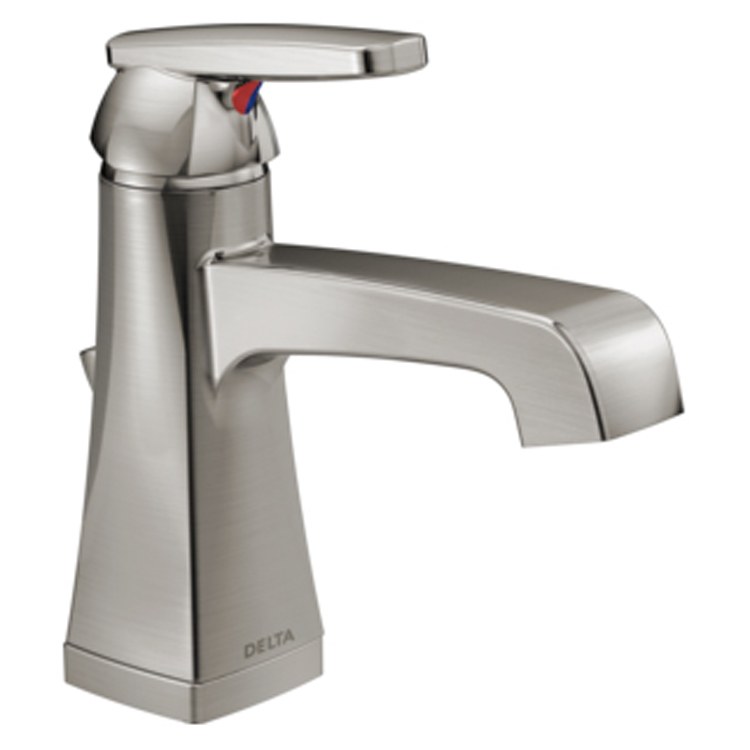

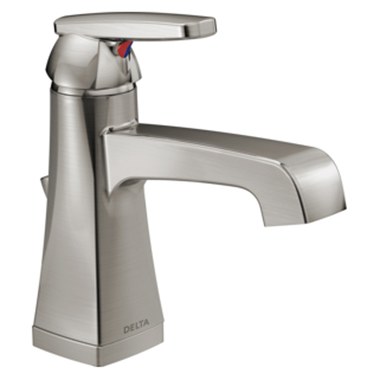

From Delta's Ashlyn Collection, this single-handle deck-mounted faucet features a 1.2 gpm flow rate and a rigid spout that doesn't swivel. Delta designed the faucet for 1-hole or 3-hole 4" installation in decks up to 2-7/8" thick. It features DIAMOND Seal Technology with a diamond-coated ceramic cartridge and has 1/4" O.D. straight, staggered PEX supply tubes.

The faucet measures 8-1/8" high and has a 5-1/8" spout reach. The kit includes an optional red and blue indicator ring and a metal push pop-up drain. This model has a Stainless finish.
  • Flow rate: 1.2 gpm
  • Faucet height: 8-1/8"
  • Spout reach: 5-1/8"
  • 1-hole or 3-hole 4" installation in decks up to 2-7/8" thick
  • Rigid spout does not swivel
  • DIAMOND Seal Technology
  • Diamond-coated ceramic cartridge
  • 1/4" O.D. straight, staggered PEX supply lines
  • Optional 6" escutcheon sold separately for 3-hole, 4" installation
  • Optional red and blue indicator ring provided
  • Finish: Stainless
  • Includes metal push pop-up type fitting with plated flange and stopper
  • ADA-compliant
  • EPA WaterSense certified for 20 percent less water usage

BrandDelta
Number of Handles1
Handle TypeLever
ADA CompliantYes
StandardWaterSense
FinishBrilliance Stainless
Flow Rate1.2GPM
MountingDeck
Spout TypeRigid
Drain TypeMetal Pop-Up
Number of Holes1/3
MaterialBrass
Spout Height3-7/16IN
Spout Reach5-1/8IN
Cartridge TypeDiamond Coated Ceramic
Inlet Size3/8IN
Inlet ConnectionCompression
Faucet Height8-1/8IN
Depth2-1/2IN
TechnologyDiamond Seal
Shipping Weight6.000 LBS
