Ashlyn Monitor 17 Series Pressure Balance Tub and Two-in-One Shower Trim

Designed with In2ition and Monitor Technology

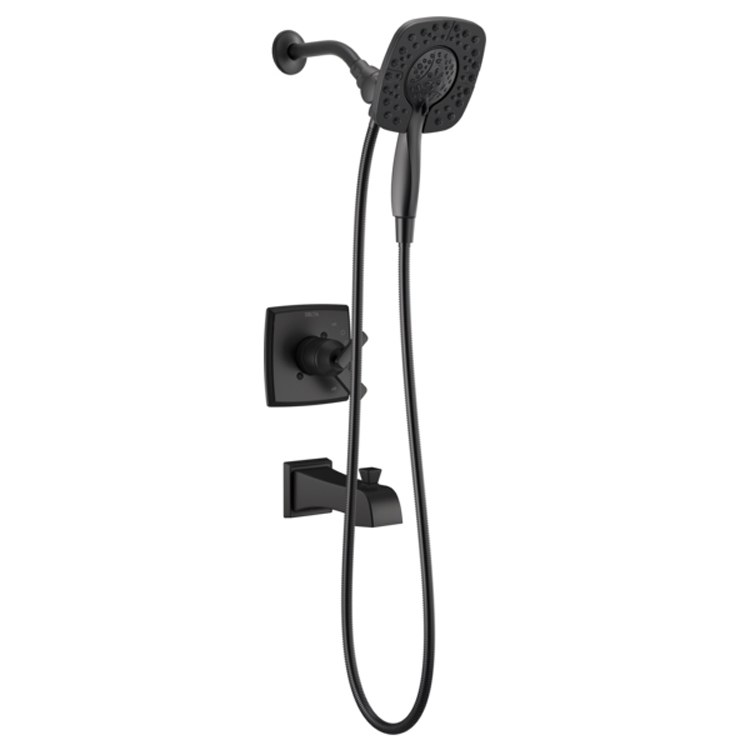

Delta designed this Ashlyn tub and two-in-one shower trim kit with In2ition and Monitor Technology. The kit features a two-in-one detachable handshower which can be used separately from or simultaneously with the showerhead. Water streams from the showerhead only, the handshower only, or both concurrently.

The 10-3/8"-long showerhead and handle has a 1.75 gpm flow rate and four spray settings: Full, Massage, Full Spray with Massage, and Pause. The 6"-square escutcheon works with a volume control lever handle and a temperature adjustment dial. The maximum dial rotation adjusts between 90 and 180 degrees. The kit also includes Touch-Clean spray nozzles for easy calcium and lime build-up removal and red and blue pad print temperature indicators.

The tub has a 6.2 gpm flow rate, a 7-15/16" spout reach, and a pull-up diverter. The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This ADA-compliant model has a Matte Black finish.

• Showerhead flow rate: 1.75 gpm
• Tub flow rate: 6.2 gpm
• Shower arm length: 5-1/2"
• Escutcheon dimensions: 6" square
• Tub spout reach: 7-15/16"
• In2ition Technology design
• Solid brass forged body
• Four spray settings: Full, Massage, Full Spray with Massage, and Pause
• Touch-Clean spray nozzles for easy calcium and lime build-up removal
• Red and blue pad print temperature indicators on handle
• Maintains balanced hot and cold water pressure and has separate temperature and volume controls
• Field adjustable means to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90 and 180 degrees
• Order MultiChoice Universal rough R10000 series separately
• Finish: Matte Black
