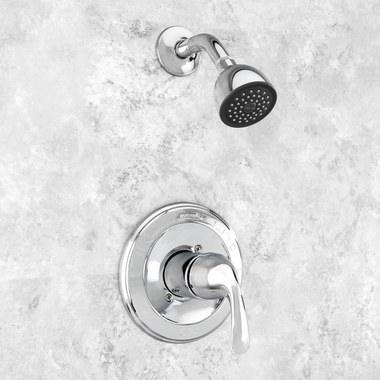

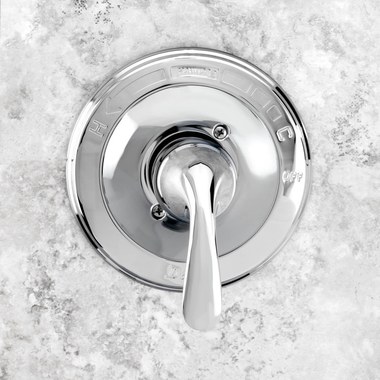

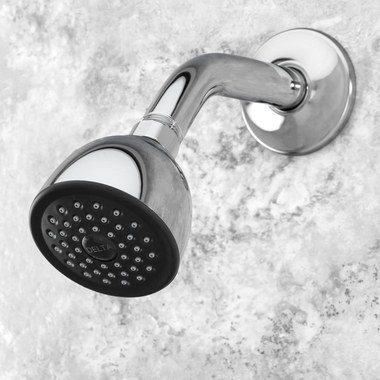

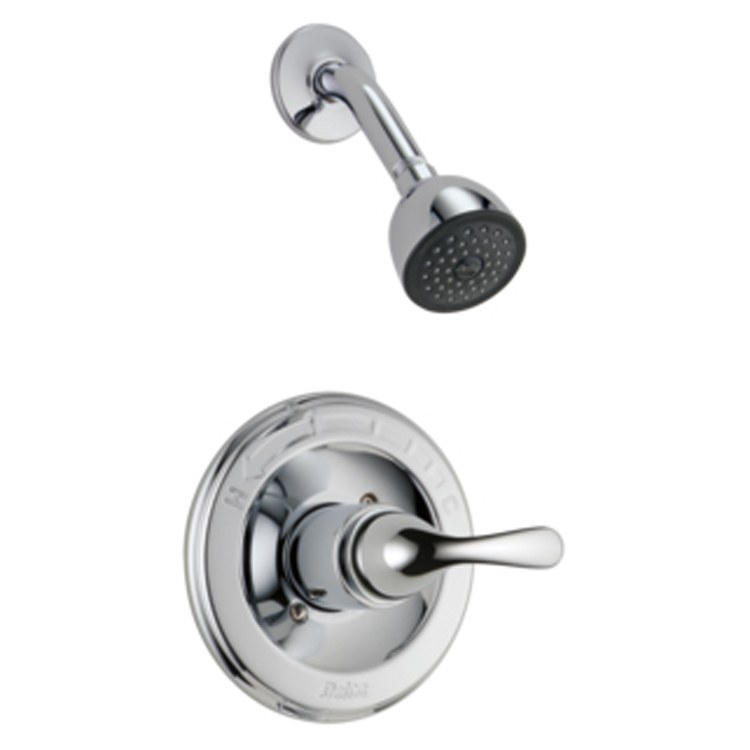

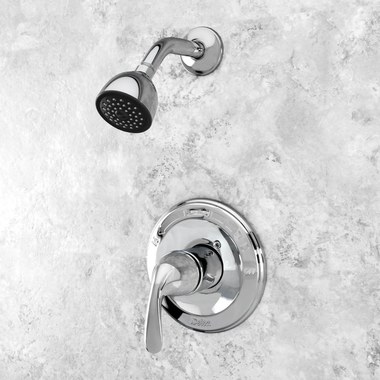

This Classic Monitor 13 Series shower trim kit uses a pressure balance valve to maintain a balanced mix of hot and cold water to prevent accidental scalding during changes in water pressure. The single lever handle controls the temperature only with a maximum handle rotation of 120 degrees. Field adjustable to limit handle rotation into the hot water zone. The kit comes with a 2-5/8" diameter, single-function shower head with a Full Spray pattern, a shower arm, and single-function pressure balanced mixing valve trim with a 7" diameter escutcheon. Does not include the rough-in valve which is sold separately.
Brand | Delta |
---|---|
Product Type | With Touch-Clean |
Number of Handles | 1 |
Handle Type | Lever |
Finish | Chrome |
Standard | WaterSense, CALGreen |
ADA Compliant | Yes |
Flow Rate | 1.75GPM |
Showerhead Type | 1 Function Full Body Spray |
Showerhead Diameter | 4-7/8IN |
Includes | Showerhead, Arm, Flange, Handle and Escutcheon |
Material | Brass |
Used on | Requires MultiChoice Universal Rough-In Valve R10000 Series |
Length | 7-1/2IN |
Width | 7IN |
Height | 9-1/2IN |
