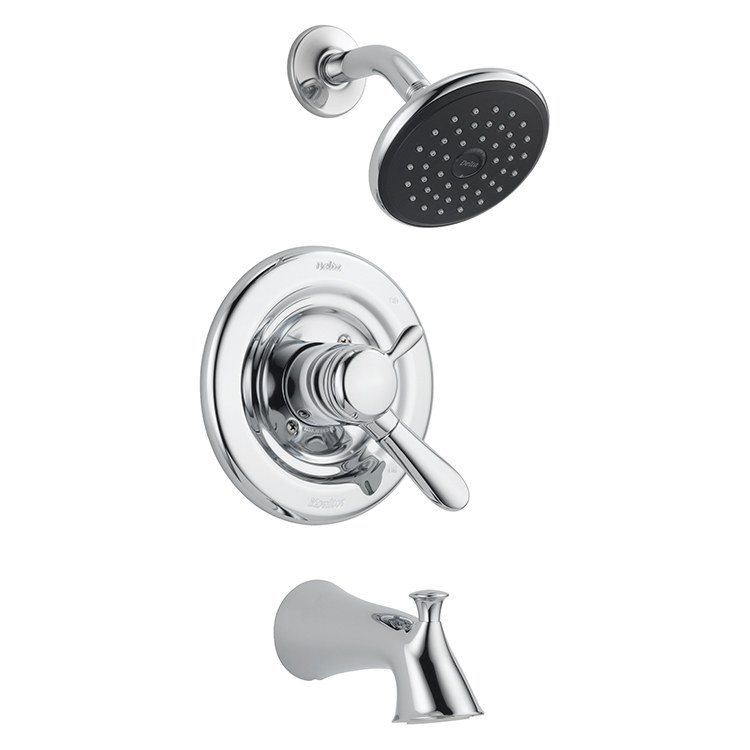

Lahara Monitor 17 Series Pressure Balance Tub and Shower Trim

Designed with Monitor Technology

Delta designed this Lahara tub and shower trim kit with Monitor Technology. The 4-15/16"-diameter showerhead has a 1.75 gpm flow rate and a 5-1/2" shower arm. The 7-1/2"-diameter escutcheon works with a volume control lever handle and a temperature adjustment dial. The maximum dial rotation adjusts between 90 and 180 degrees.

The tub has a 6.2 gpm flow rate and a 5-1/2" spout reach. The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This ADA-compliant model has a Chrome finish.

• Showerhead flow rate: 1.75 gpm
• Tub flow rate: 6.2 gpm
• Showerhead diameter: 4-15/16"
• Shower arm length: 5-1/2"
• Escutcheon diameter: 7-1/2"
• Tub spout reach: 5-1/2"
• Solid brass forged body
• Back-to-back installation capability
• Maintains balanced hot and cold water pressure
• Separate temperature and volume controls
• Field adjustable means to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90 and 180 degrees
• Tub spout has a pull-up diverter
• Order MultiChoice Universal rough R10000 series separately
• Finish: Chrome
