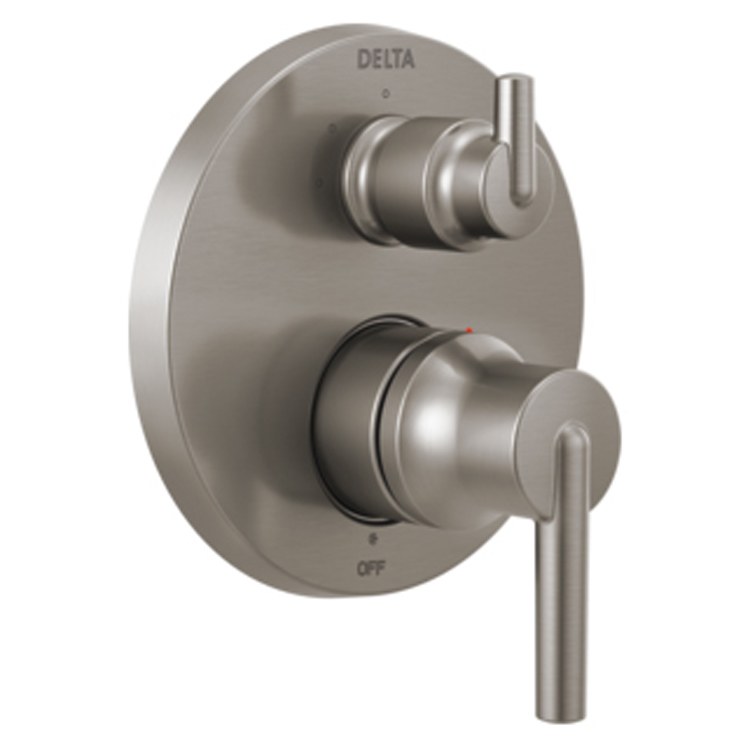

Contemporary Monitor 14 Series Pressure Balance Valve Trim with Three-Function Diverter

Designed with Monitor Technology

This Contemporary Monitor 14 Series valve trim features a main control that utilizes a single-function pressure balanced cartridge and maintains a balanced hot and cold water pressure. The escutcheon measures 6-5/8" in diameter and has two handles: the top handle controls three diverter functions, and the bottom handle controls on and off and temperature. The bottom handle has a maximum rotation of 120 degrees. The escutcheon also features red and blue temperature indicator markings. The valve trim installs in finished walls up to 1-1/8" thick. This ADA-compliant model has a Stainless finish.

• Escutcheon diameter: 6-5/8"
• Maximum system flow rate: 5.0 gpm
• Main control utilizes single-function pressure balanced cartridge
• Maintains balanced hot and cold water pressure
• Requires MultiChoice Universal Rough R22000 series - sold separately
• Top handle controls diverter functions
• Bottom handle controls on and off and temperature
• Field adjustable means to limit handle rotation into hot water zone
• Bottom handle maximum rotation: 120 degrees
• Red and blue temperature indicator markings
• Three-function diverter for two individual positions, one shared position
• For two individual functions, no shared functions, order additional RP71717
• Includes cartridges
• Standard installation allows up to 1-1/8" finished wall thickness
• Finish: Stainless
