Angular Modern Monitor 17 Series Pressure Balance Valve Trim with Three-Function Diverter

Designed with Monitor Technology

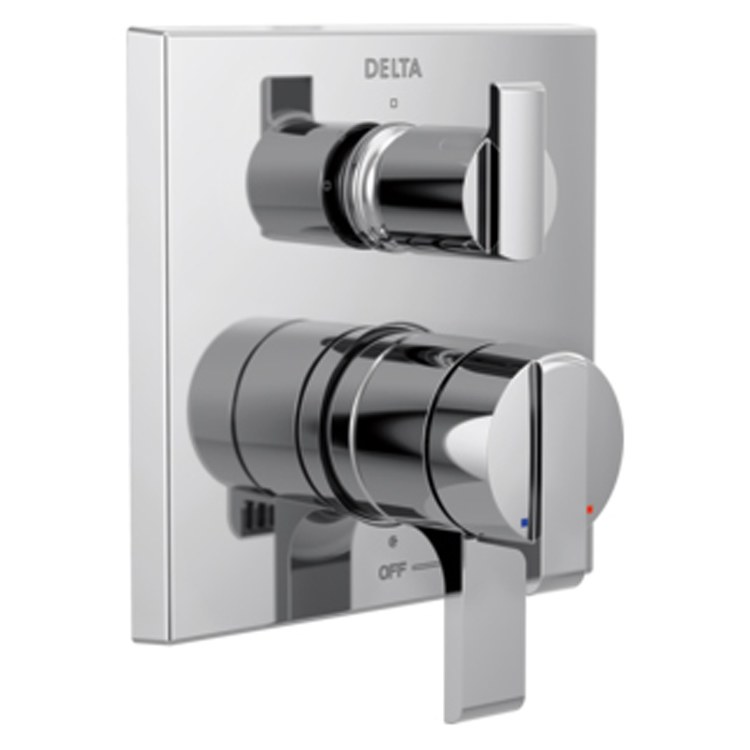

This Angular Modern Monitor 17 Series valve trim features a main control that utilizes a dual-function pressure balanced cartridge and maintains a balanced hot and cold water pressure. The escutcheon measures 3-3/8" long (front to back) by 6-13/16" wide by 6-13/16" high as two handles. The top handle controls three diverter functions, and the bottom handle controls on and off and adjusts water volume while a dial controls the temperature. The bottom handle has a maximum rotation of 90 degrees. The escutcheon also features red and blue temperature indicator markings. The valve trim installs in finished walls up to 1-1/8" thick. This ADA-compliant model has a Chrome finish.

• Escutcheon dimensions: 3-3/8" L (front to back) x 6-13/16" W x 6-13/16" H
• Maximum system flow rate: 5.8 gpm
• Main control utilizes dual-function pressure balanced cartridge
• Maintains balanced hot and cold water pressure
• Requires MultiChoice Universal Rough R22000 series - sold separately
• Top handle controls diverter functions
• Bottom handle controls on and off and adjusts volume, dial controls temperature
• Field adjustable means to limit handle rotation into hot water zone
• Bottom handle maximum rotation: 90 degrees
• Red and blue temperature indicator markings
• Three-function diverter for two individual positions, one shared position
• For two individual functions, no shared functions, order additional RP71717
• Includes cartridges
• Standard installation allows up to 1-1/8" finished wall thickness
• Finish: Chrome
