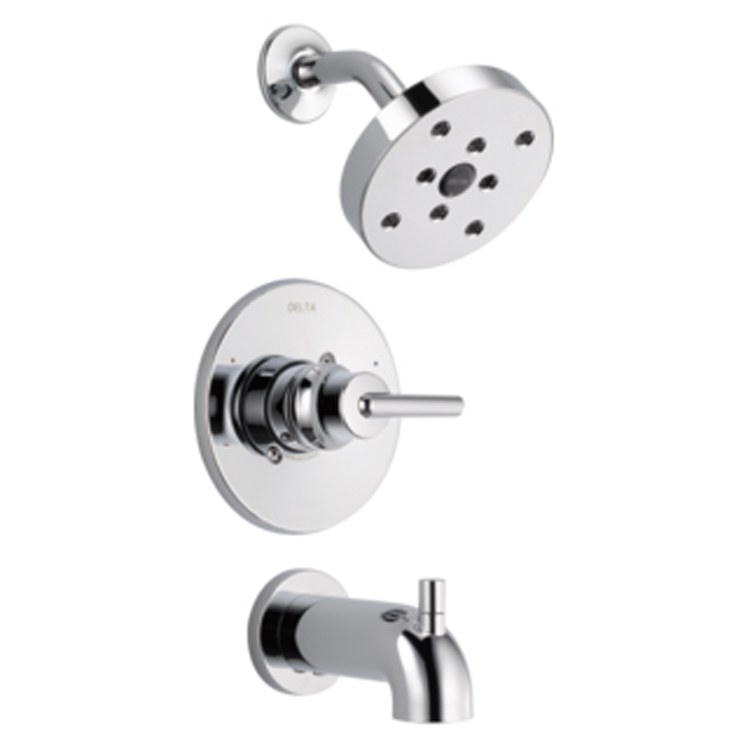

Trinsic Monitor 14 Series Tub and Shower Trim

Designed with Monitor Technology

Delta designed this Trinsic shower trim and tub kit with Monitor Technology. The 5-13/32"-diameter showerhead has a 1.75 gpm flow rate and a 5-1/2" shower arm. The escutcheon has a 6-1/2" diameter and includes a metal lever handle. The handle rotates 120 degrees and controls the water temperature. The tub spout has a 6.0 gpm flow rate, a 5-1/2" reach, and includes a pull-up diverter.

The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This model has a Chrome finish.

• Showerhead flow rate: 1.75 gpm
• Tub flow rate: 6.0 gpm
• Showerhead diameter: 5-13/32"
• Shower arm length: 5-1/2"
• Escutcheon diameter: 6-1/2"
• Tub spout reach: 5-1/4"
• Maintains balanced hot and cold water pressure
• Metal lever handle controls temperature
• Field adjustable means to limit handle rotation into hot water zone
• Maximum handle rotation: 120 degrees
• Order MultiChoice Universal Rough R10000 series separately
• Finish: Chrome
• ADA-compliant
• EPA WaterSense certified for 20 percent less water usage
