Trinsic Monitor 17 Series Pressure Balance Tub and Shower Trim

Designed with Monitor Technology

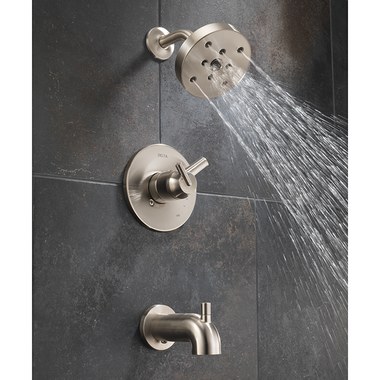

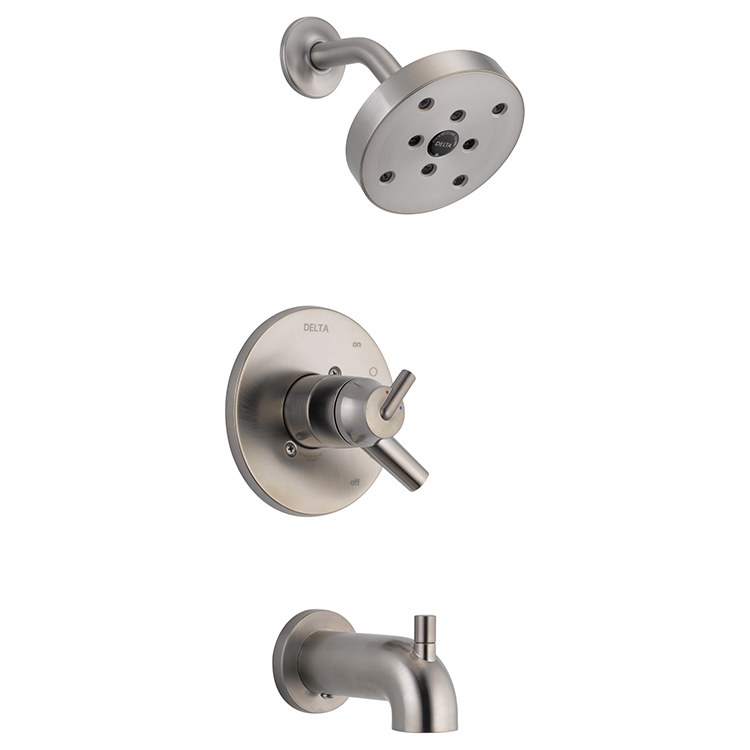

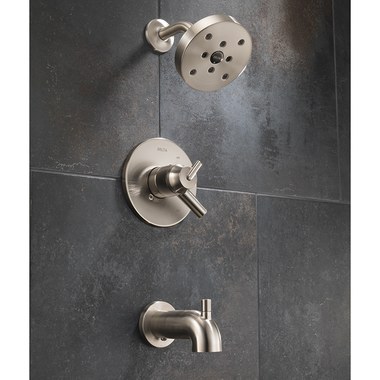

Delta designed this Trinsic tub and shower trim kit with Monitor Technology. The 5-13/32"-diameter showerhead has a 1.75 gpm flow rate and a 5-1/2" shower arm. The 6-1/2"-diameter escutcheon works with a volume control lever handle and a temperature adjustment dial. Red and blue pad print temperature indicators are on the handle. The maximum dial rotation adjusts between 90 and 180 degrees.

The tub has a 6.2 gpm flow rate, a 5-1/4" spout reach, and a pull-up spout diverter. The kit's design features a single-function pressure-balanced mixing valve cartridge that maintains a consistent temperature to prevent scalding during water pressure changes. The MultiChoice Universal Rough R10000 is not included and is sold separately. This ADA-compliant model has a Stainless finish.

• Showerhead flow rate: 1.75 gpm
• Tub flow rate: 6.2 gpm
• Showerhead diameter: 5-13/32"
• Shower arm length: 5-1/2"
• Escutcheon diameter: 6-1/2"
• Tub spout reach: 5-1/4"
• Solid brass forged body
• Maintains balanced hot and cold water pressure
• Separate temperature and volume controls
• Field adjustable means to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90 and 180 degrees
• Tub spout has a pull-up diverter
• Red and blue pad print temperature indicators on handle
• Order MultiChoice Universal rough R10000 series separately
• Finish: Stainless
