Drain Pan

Diversitech 6-3060L

30" x 60" ABS Plastic Condensate Drain Pan

Authorized Distributor

$121.76  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

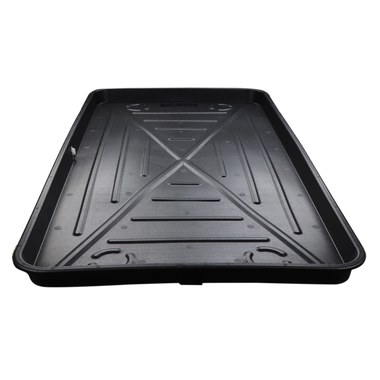

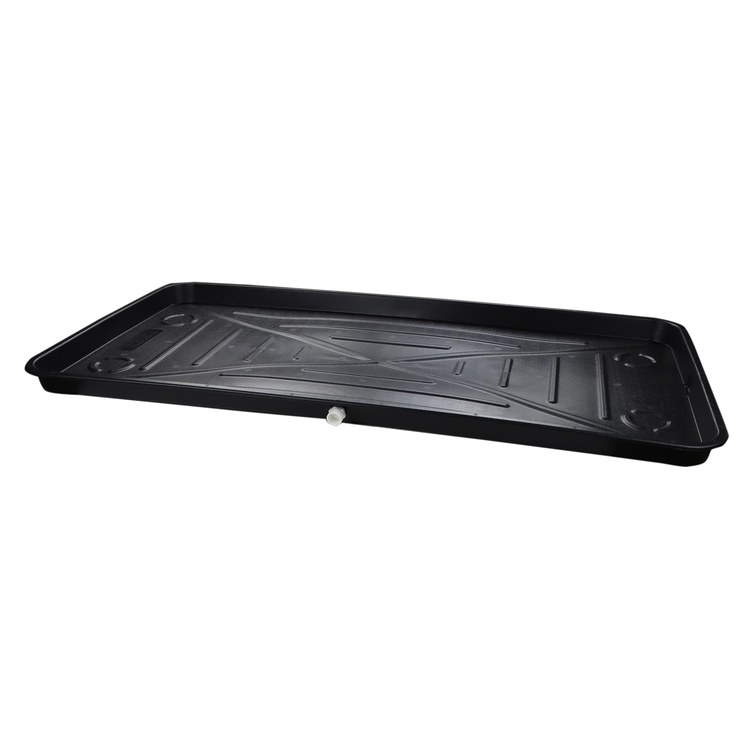

This 30" x 60" 6-3060L ABS Plastic Drain Pan is used to collect condensate from cooling and evaporator coils in locations where damage to any building component could occur as a result of overflow. The drain line outlet on pan's long side. Includes 3/4" fittings. Fully nestable for easy storage.

  • Pan holds up to 2" of water
  • Comes equipped with 3/4" diameter PVC discharge fitting
  • The seamless construction features rolled edges on all sides for maximum safety and integrity
  • No seams, no rust, and no leakage
  • Complies with Southern Building Code
  • Drain outlet location: long side
  • For ducted systems

BrandDiversitech
Product TypeSecondary Condensate
Size30x60IN
MaterialABS Plastic
Used onAir Conditioner
Length30IN
Width60IN
Shipping Weight9.000 LBS
