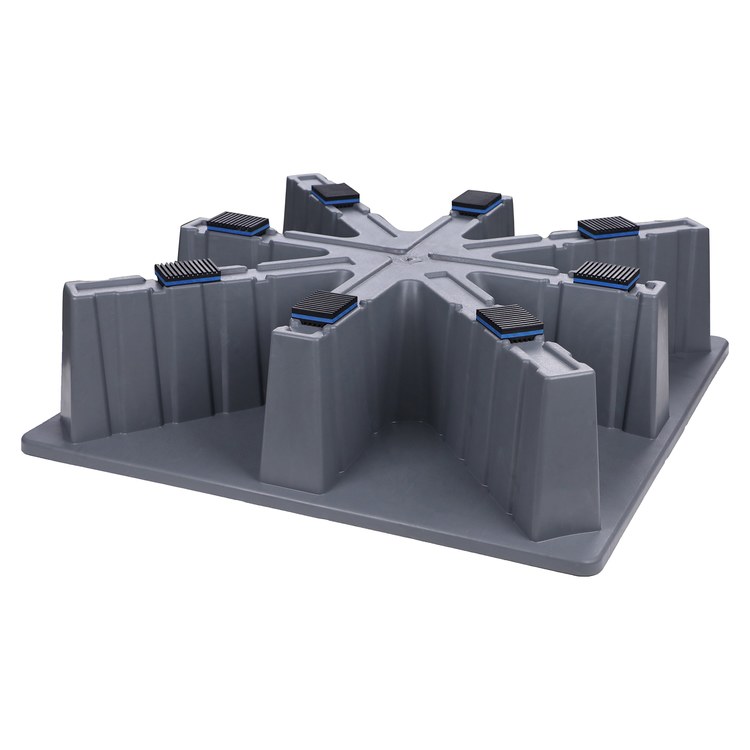

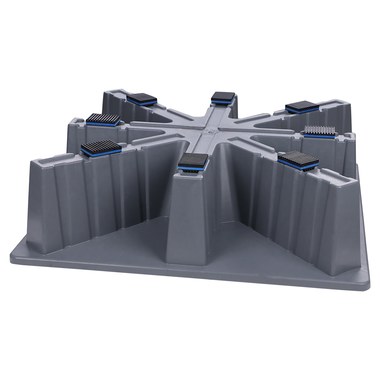

Heat Pump Riser

Diversitech HP3636-8

36" x 36" x 8" Heat Pump Riser Pad

Authorized Distributor

Diversitech
$203.96  / ea
Qty
truck image Ships directly to your store or location

FOR PRO PRICE LOGIN OR CREATE AN ACCOUNT

Specification Sheet

The Heat Pump Riser Pad for Cold Climates.

The Heat Pump Pad HP3636-8 is a 36" x 36" x 8" base pad for heat pumps installed in snowy climates. Rather than the typical combination of an equipment pad and 6" heat pump risers, the Heat Pump Pad provides a full 8" of elevation in a square footprint. The star pattern of the integral risers allows for installation of equipment with different size footprints up to 36" x 36". Risers are molded into the pad to form a solid single piece base.
  • Innovative star pattern of integral risers allows for installation of equipment with different size footprints up to 36" x 36"
  • Heat Pump Pad kit includes eight anti-vibration pads custom made to fit into the guide slots on the top of the integral risers and can be adjusted to equipment footprint
  • The base is sloped outward to allow for easy drainage of condensate or defrost cycle condensate when the outdoor coil is operating in heat pump mode
  • The nestable feature of the Heat Pump Pad makes for efficient shipping, transportation, and warehousing
  • Environmentally friendly, molded from recycled polypropylene material
  • Unaffected by UV exposure or extreme weather
  • Drillable making it easy to secure equipment to the pad if necessary
  • Made in the USA

BrandDiversitech
Product TypePad
MaterialPolypropylene
Size36x36IN
Length36IN
Width36IN
Height8IN
Shipping Weight18.000 LBS
