Electric Mini Tank Water Heater

Eliminate Long Hot Water Pipe Runs

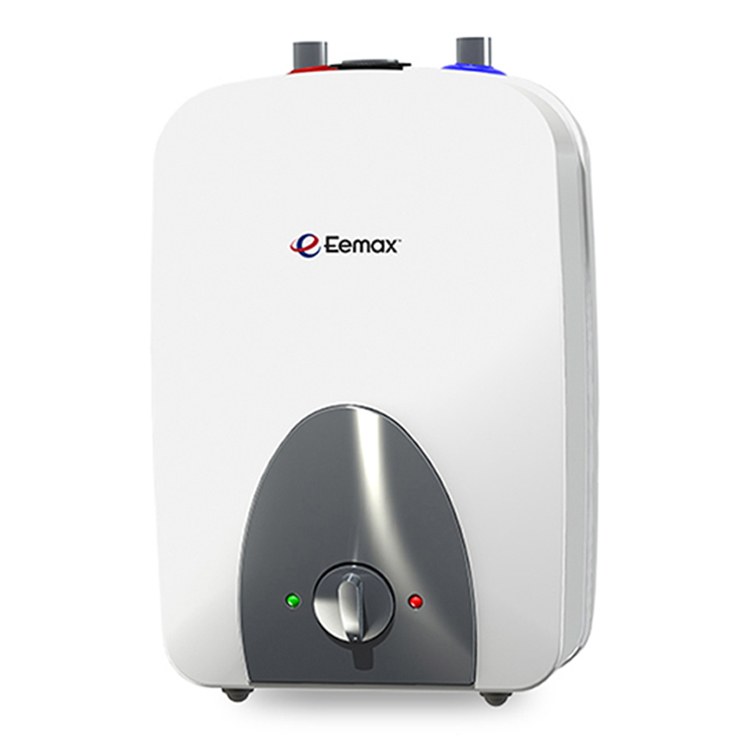

This point-of-use EMT1 Electric Mini-Tank Water Heater has a compact design that fits virtually anywhere on the wall or the floor. This 1.6-gallon, single-phase unit provides hot and cold water feed with adjustable temperature control from 50 to 140 degrees F. The water heater features a single-weld glass-lined tank for extended life, a maximum operating pressure of 150 psi, and a heating capacity of 1440 watts. A tank status indicator light shows when the unit is in heating mode (red) or ready mode (green). The plug-in design uses 120 volts and 12 amps. The heater includes an electric cord, temperature and pressure relief valve, and a wall-mount bracket. ETL-listed to UL174 and NSF373.

• Dimensions: 9-5/8" L (front to back) x 9-23/32" W x 15-13/32" H
• Tank capacity: 1.6 gal
• Water fittings: 1/2" NPT connections at top of unit
• Connection type: Plug in (cord included)
• Recovery time: 8 minutes (based on 60-degree temperature rise)
• Includes temperature and pressure (T&P) relief valve
• Maximum water pressure: 150 PSI
• 120V/1ph/12A
