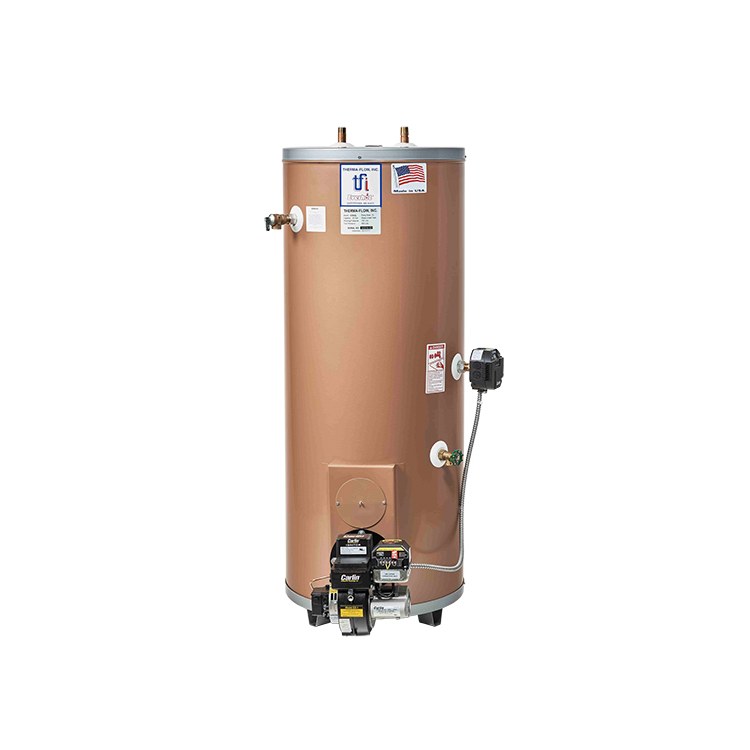

Glass-Lined Oil-Fired 30-Gallon Residential Water Heater Less Burner

Compliant with Department of Energy Requirements

Therma-Flow/Everhot designed and built their oil-fired water heaters to provide homeowners with dependable, highly efficient hot water production within a durable, long-lasting unit. An independent government-certified laboratory tests the units to ensure that the water heaters achieve the highest possible ratings for efficiency and reliable hot water flow. These water heaters are easy to maintain as all piped fittings are accessible from the front of the heater. The "female" temperature and pressure adapter directly accept the "male" temperature and pressure relief valve, so adding a coupling is no longer necessary. There is an extra large observation door for flame inspection and testing.

• Dimensions: 22" DIA x 58" H
• Storage capacity: 30 gallons
• Rear flue
• Flue collar diameter: 6"
• UEF testing approved for Dept. of Energy
• Brass nipple connection Diptube and Hot Water outlet
• 2" high-density blanket-type insulation
• Easy access for magnesium rod replacement
• Factory-installed brass drawoff
• Factory-installed brass well for aquastat
• Heavy-duty glass-lined steel tank - Cobalt Porcelain Enamel
• Large observation door for efficiency testing
• Baked enamel steel jacket
