Make Fast and Easy Welding Bevels.

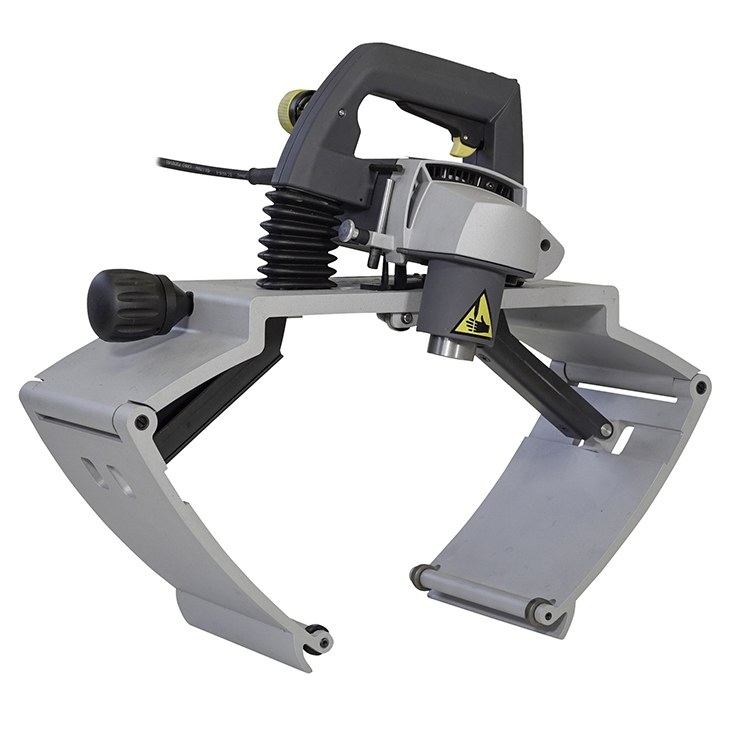

Get continuous good results for on-site pipe beveling applications with Exact's PipeBevel 360E. You can easily make fast and accurate welding bevels to pipes in a variety of materials. The user interface of the machine is similar to Exact pipe saws, which makes it easy for the operator to adapt after cutting the pipe with any Exact pipe saw.
The cutting head of the beveller has 3 cutting tips, each of them having 4 cutting edges to rotate once becoming blunt, so it is economical to use. The cutting heads are available in most commonly used bevel angles (30 degrees, 37.5 degrees and 45 degrees). It is also possible to make different 'tailored' bevel angles if required. There is also a stopper feature that enables the operator to make similar additional bevels to the same pipe O/D.
Includes 360E piper beveller, shoulder bag, two pipe supports, 5 mm Allen key, instruction, and DVD video.
- Pipe diameter (OD): 4.33" - 14.17" (110 mm-220mm)
- Wall thickness: 0.39" (10 mm) steel
- Cuts steel, stainless steel, and aluminum
- Voltage/Power: 110-120 volts/1000 watts
- No-Load speed: 3500 - 8000 r/min
- Blade holder diameter: 1.88" (48 mm)
- Different bevel angles: 30 degrees, 37.5 degrees, and 45 degrees
- Weight: 24.7 lbs (11.2 kg)
- Range of use (diameter) : 4.33"- 14.17" (100 mm - 360 mm)
- Max. pipe wall: 0.39" (10 mm) steel
Ships directly to your store or location
