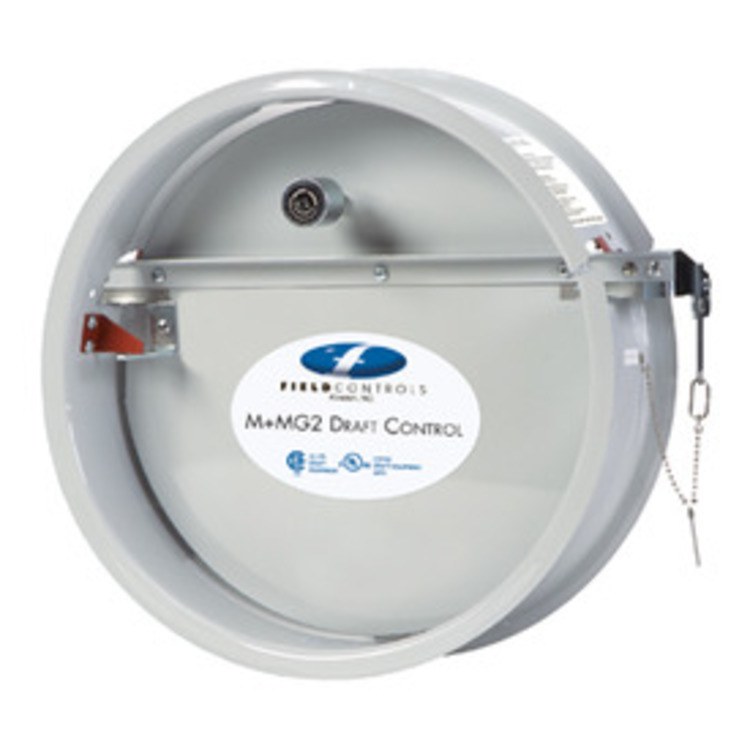

Control Draft 10 Inch for Solid Gas Or Oil Large Residential/Commercial and Industrial 10MMG2

For proper operation and efficient fuel consumption in oil, gas, and/or coal-fired heating appliances, draft must remain constant. When it is, combustion is more complete, fuels are utilized efficiently, and money is saved. Field Draft Controls maintain consistent draft by counteracting the negative forces caused by changes in temperature and barometric pressure, as well as the effects of wind.

• This is a series of compact, rugged, heavy-duty controls for use on large residential, commercial and industrial applications
• The field type M+MG2 draft control provides precise draft regulators for solid fuels, oil, gas, or oil/gas appliances requiring only the simplest, on-the-job adjustments depending on which fuel is to be utilized
• In a gas installation, the double-acting Type M+MG2 is specified instead of a draft hood to give the appliance the assistance of the chimney
• In a duel fuel oil/gas or a gas-fired only application, use the M+MG2 as a double-acting draft control with the optional field thermal switch accessory
• Use the M+MG2 as a single-acting draft control for oil or solid fuel applications
• For any installation with 10 in or larger diameter vent pipe, specify our standard M+MG2 draft control, the unit that can be adapted to any fuel
• The moving part (gate) rests on a long, thin, stainless steel knife edge which, in turn, is supported by self-aligning and self-cleaning bearings
• When the heavy gauge gate moves, only the knife edge rests on the bearing for minimum friction and maximum sensitivity to draft changes
• Control size 10
• 78.5 sq-in nominal capacity
• 9 to 10 in recommended pipe diameter
• 28-1/4 to 31-1/2 in recommended pipe circumference
