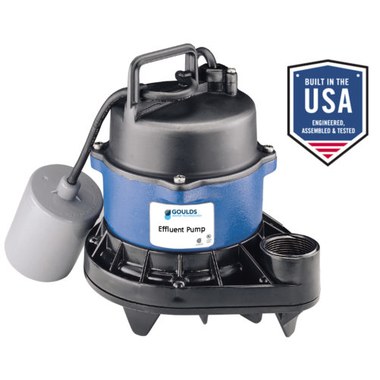

EP04 Series Cast Iron Effluent Pumps

Built for Heavy-Duty Residential Effluent and Sump Applications

3871 (EP04) Series Effluent Pumps can handle solids up to 3/4" and have a 1-1/2" discharge. They feature a durable thermoplastic base and casing. The cast iron motor housing allows for efficient heat transfer and durability. This pump is ideal for residential effluent systems and heavy-duty sump applications.

• Flow rate: 55 gpm
• 4/10 HP
• 115V/1ph/12A
• Piggyback/wide angle
• 20' cord length
• Discharge connection: 1-1/2" NPT
• EP04 impeller features a thermoplastic semi-open design with pump-out vanes for mechanical seal protection
• Rugged thermoplastic casing and base provides superior strength and corrosion-resistance
• Cast iron motor housing for efficient heat transfer, strength, and durability
• Thermoplastic motor cover with integral handle and float switch attachments points
• Severe-duty rated power cable that's resistant to oil and water
• Upper and lower heavy-duty ball bearing construction
• Capable of running dry without damaging the components
• 3-year standard warranty (4-year GPDA)
