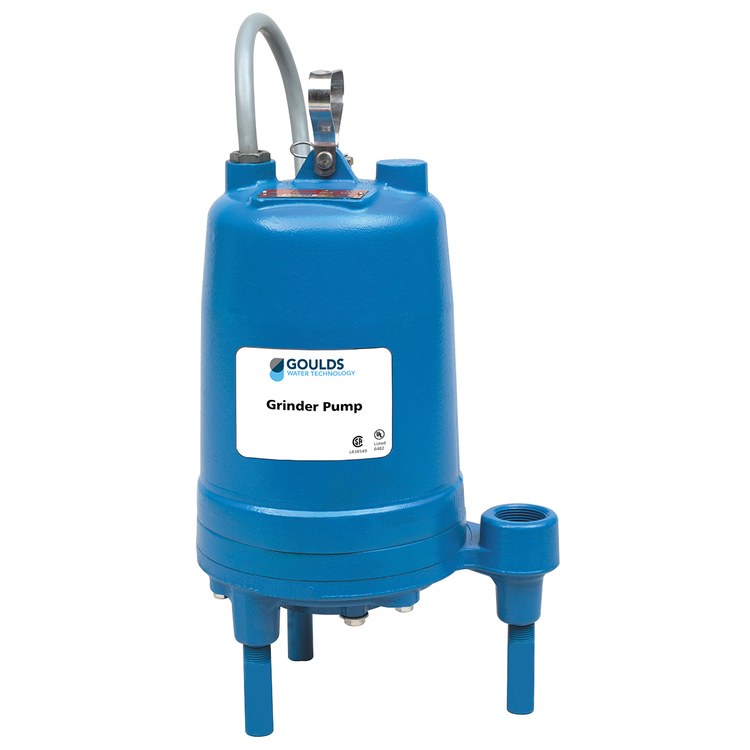

RGS2012 Series Submersible Grinder Pump

Reliable Residential Grinder Pump with Anti-Roping Design

RGS2012 Series Residential Grinder Pumps are radial cutter-style pumps that can be flipped once in the field, to expose the factory-sharpened side of the cutting ring. It does not require external motor components in the panel and is capable of grinding domestic sewage in individual residential applications. This pump is designed for residential, agriculture, and light commercial applications.

• Flow rate: 42 gpm
• 2 HP
• 208-230V/1ph/15A
• Manual operation
• Power cord: 20' with bare leads
• Discharge connection: 1-1/4" NPT
• Capable of grinding domestic sewage in individual residential applications
• Anti-roping design cutter system
• Motor is fully submerged in oil-filled chamber, allowing for more efficient heat dissipation, permanent lubrication of bearings and mechanical seal, and protection against outside environment
• Silicon bronze semi-open impeller with non-overloading two vane design and pump-out vanes for mechanical seal protection
• Cast iron volute type casing for high efficiency
