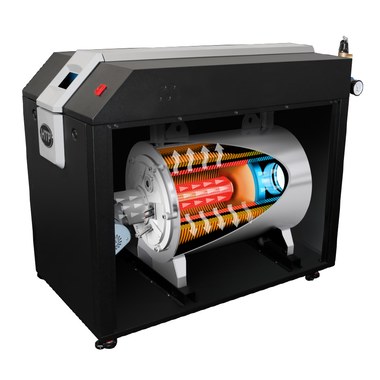

Designed with Highly-Efficient Four-Pass Heat Exchanger

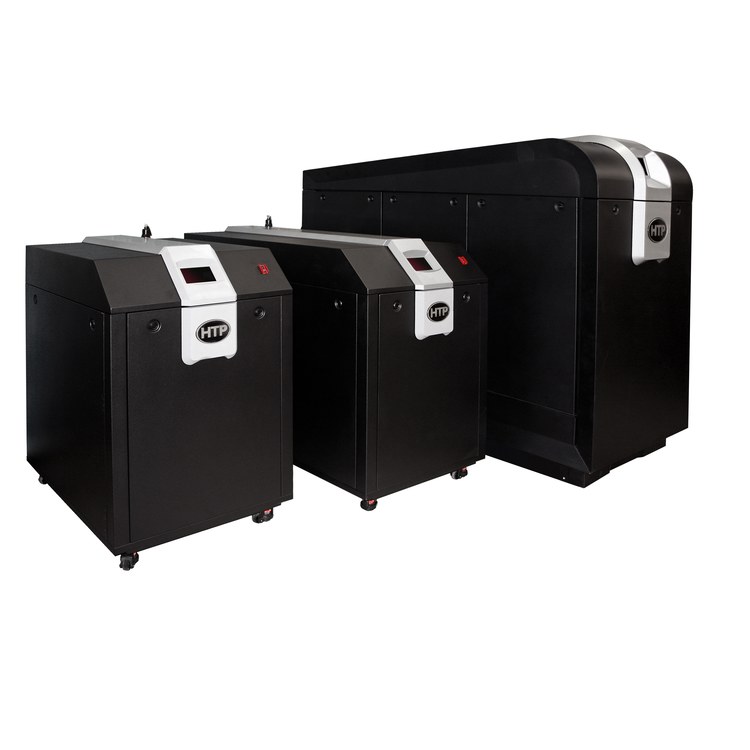

The Elite XL is a powerful commercial boiler available in seven sizes ranging from 400,000 Btu/Hr to 2,000,000 Btu/Hr. The four-pass heat exchanger increases heat transfer in one of the industry's smallest footprints of commercial boilers, making installation possible even in the most confined places possible. The Elite XL cascades up to eight boilers at once.
- Dimensions: 79" L (front to back) x 31-13/16" W x 60-13/16" H
- 2M BTU
- 120V/60Hz/21.3A
- 10:1 turndown ratio
- 97 percent thermal efficiency
- Water connection: 2-1/2" flange
- Gas connection: 2" NPT
- Condensate connection: 1" PVC
- 316L stainless steel heat exchanger
- Powder-coated galvanized steel cabinet
- Four-pass heat exchanger
- Three pump control - system, boiler, and DHW
- Cascade up to eight boilers
- HTP Link - WiFi solution enables remote monitoring of appliance and system
- Units can be stacked and/or installed outdoors with optional kits
