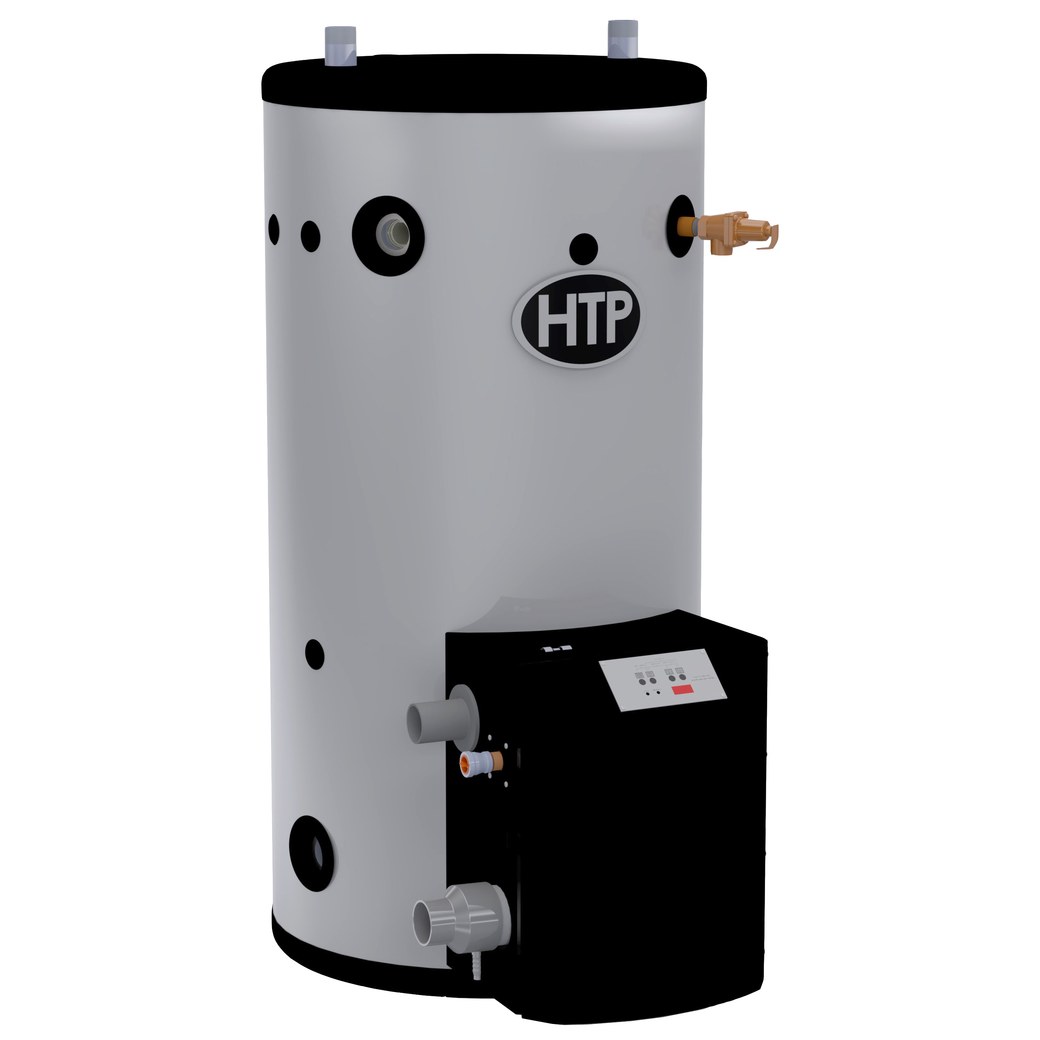

Water Heater

HTP PH199-55

Phoenix Commercial Gas Water Heater

Authorized Distributor

HTP
Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.
Specification Sheet
Installation Manual
Submittal Sheet

316L Stainless Steel Tank

The Phoenix is a highly efficient and extremely versatile gas fired water heater. It is manufactured with exceptionally durable stainless steel materials to last longer and provide optimum heat transfer. It is 95 percent efficient with a five-to-one turndown, making it Energy Star rated and a great choice for your heating needs.
  • Dimensions: 23" DIA x 54-3/4" H
  • 199K BTU
  • Tank capacity: 55 gal
  • 95 percent thermal efficiency
  • Inlet and outlet connections: 1" NPT
  • Tank constructed of high-quality stainless steel with a cupronickel heat exchanger combined with anode rod
  • Multi-fit models have top and side DHW connections to ensure easy installation
  • Front combustion chamber allows for ease of access and service
  • Intelligent controls monitor inlet and outlet water temperatures to automatically adjust modulation
  • Vents in PVC, CPVC, Stainless Steel, and ULC S636 up to 200 ft combined intake and exhaust with 3"
  • Natural gas models include LP conversion kits
  • Fully automatic temperature control up to 160 degrees F
  • Temperature and pressure relief valve - factory installed
  • Full port brass drain valve
  • 3/4" female gas connection

BrandHTP
Product TypeLight Duty
FuelNatural Gas
Tank Capacity55GAL
StyleModulating
BTU199K BTU
Efficiency96%
Inlet/Outlet Connection3/4IN
VentingDirect Vent
InsulationPolyurethane Foam
Shipping Weight175.000 LBS
AHRI7056796
