316L Stainless Steel Tank

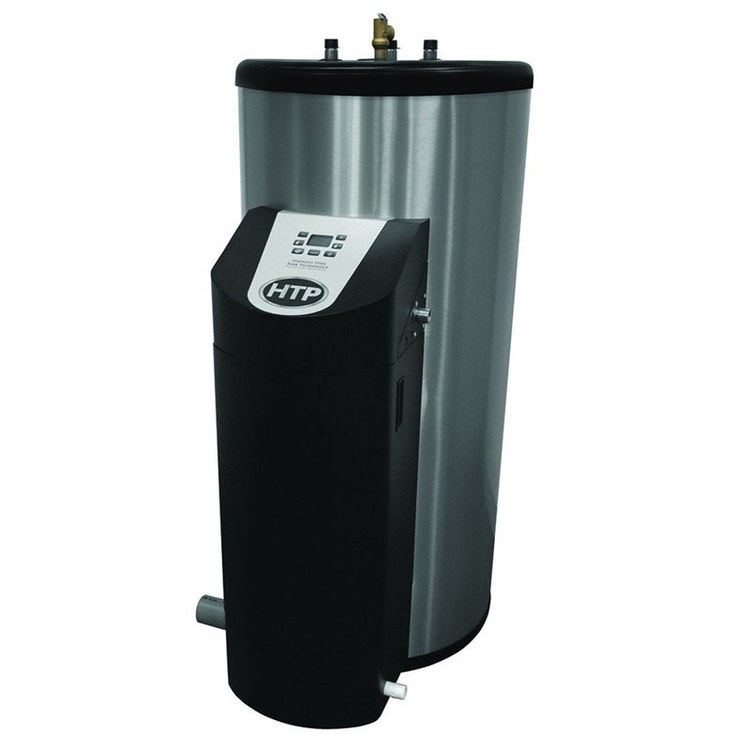

The Phoenix Light Duty Water Heater is highly efficient with up to a.90 Uniform Energy Factor (UEF) rating and three-to-one turndown ratio. This water heater is constructed with durable 316L stainless steel to resist corrosion and last longer. It's lightweight and features top port connections to make installations easier. It is Energy Star rated ultra-low NOx compliant, making it eco-friendly.
- Dimensions: 23" DIA x 44-1/4" H
- 76K BTU
- Tank capacity: 50 gal
- 0.9 UEF
- Modulating burner allows three-to-one turndown
- Tank constructed of high-quality stainless steel with a cupronickel heat exchanger
- Front combustion chamber for ease of access and service
- Easy-to-read LCD screen
- Intelligent controls monitor inlet and outlet water temperatures to automatically adjust modulation
- Vents in 2" PVC, CPVC, or ULC S636 up to `150 ft combined intake and exhaust
- Fully automatic temperature controls up to 160 degrees F
- Auxiliary port for recirculation line or to hook up with an air handler
- Temperature and pressure relief valve included
- Durable brass drain valve
- 1/2" female gas connection
