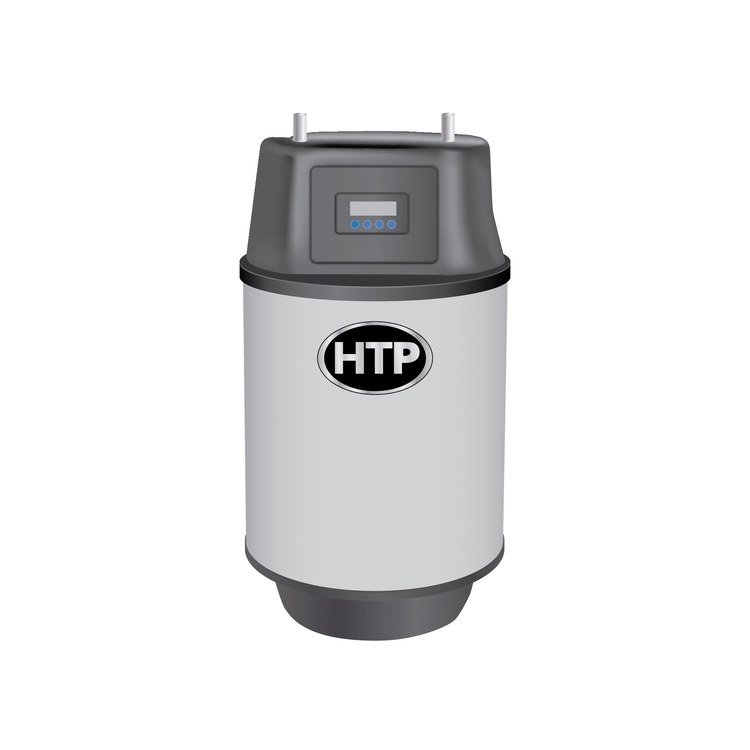

Water Heater

HTP RGH20-100F

High-Efficiency Crossover Floor Water Heater

Authorized Distributor

Account required to order

Important: Licensed Contractor Required for Installation.

This product requires installation by a licensed contractor with appropriate equipment to test and calibrate. Failure to comply with this requirement can result in substantial property damage, injury, and death.

Uses an Advanced Stainless Steel Integrated Fire Tube Heat Exchanger

The Crossover Residential and Commercial Floor Water Heater is a revolutionary product designed to be the industry's most efficient, affordable residential tank-type product. These models are Energy Star certified and combine the flow capacity of a 50-gallon tank-type water heater with the continuous flow feature found in tankless water heaters.
  • Dimensions: 22" DIA x 46-29/32" H
  • 100K BTU
  • Tank capacity: 20 gal
  • 0.87 UEF
  • Spark ignition, no pilot
  • Extra thick insulation combined with small water volume storage results in very low standby loss
  • Stainless steel tank construction with integrated fire tube heat exchanger design
  • Preset for natural gas - ships with a liquid propane conversion kit
  • Air handler application: combination heating and DHW
  • High-altitude compliant - certified up to 10,000 ft above sea level
  • Endless hot water - advanced temperature control - compatible with recirculation systems
  • Eco-friendly and low NOx combustion system leave almost no carbon footprint
  • Includes an ASSE 1017 domestic-rated thermostatic valve (pre-piped), increasing 1st draw capacity and temperature control
  • Indoor floor-standing installation

BrandHTP
Product TypeHigh Efficiency Crossover
FuelNatural Gas
Tank Capacity20GAL
BTU100K BTU
Efficiency99%
Tank MaterialStainless Steel
VentingDirect Vent
Ignition TypeDirect Spark
Shipping Weight110.000 LBS
