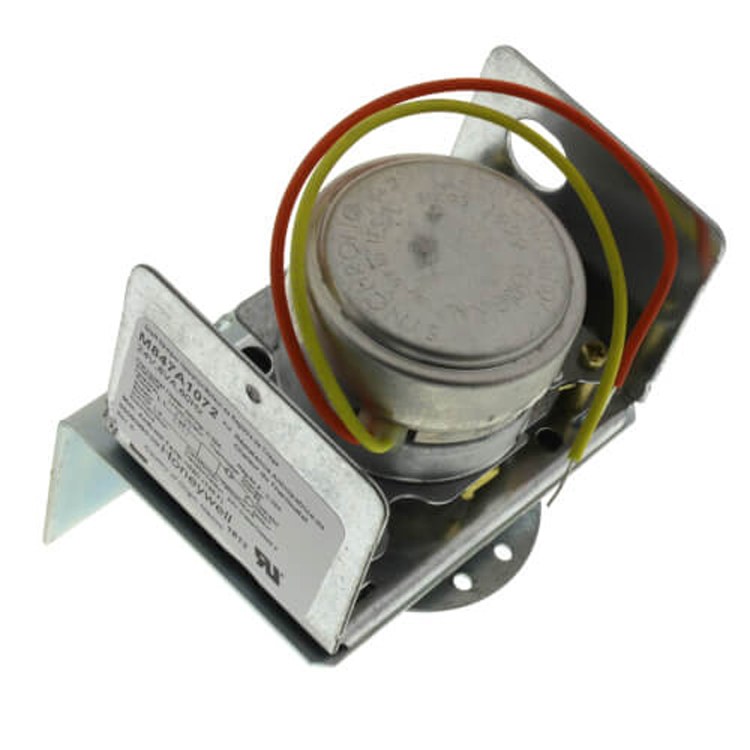

Two-Position Draft Damper Actuators. Use with two-wire 24V room thermostats or other low voltage controllers to operate the draft damper on solid fuel furnaces or boilers and other similar light duty applications.
| Brand | Honeywell Home |
|---|---|
| Product Type | 2 Position SPST with Linkage Chain |
| Style | Spring Return |
| Mounting | Foot Direct Coupled |
| Size | 3-1/2x2-5/8x3-5/16IN |
| Voltage | 24V |
| Frequency | 60Hz |
| Torque Rating | 1.9IN LB |
| Temperature | 40 to 125DEG F |
| Stroke Length | Angle of Rotation 45DEG |
| Application | 2 Wire 24V Room Thermostat or Other Low Voltage Controller |
| Length | 3-1/2IN |
| Width | 2-5/8IN |
| Height | 3-1/2IN |
| Shipping Weight | 5.000 LBS |
