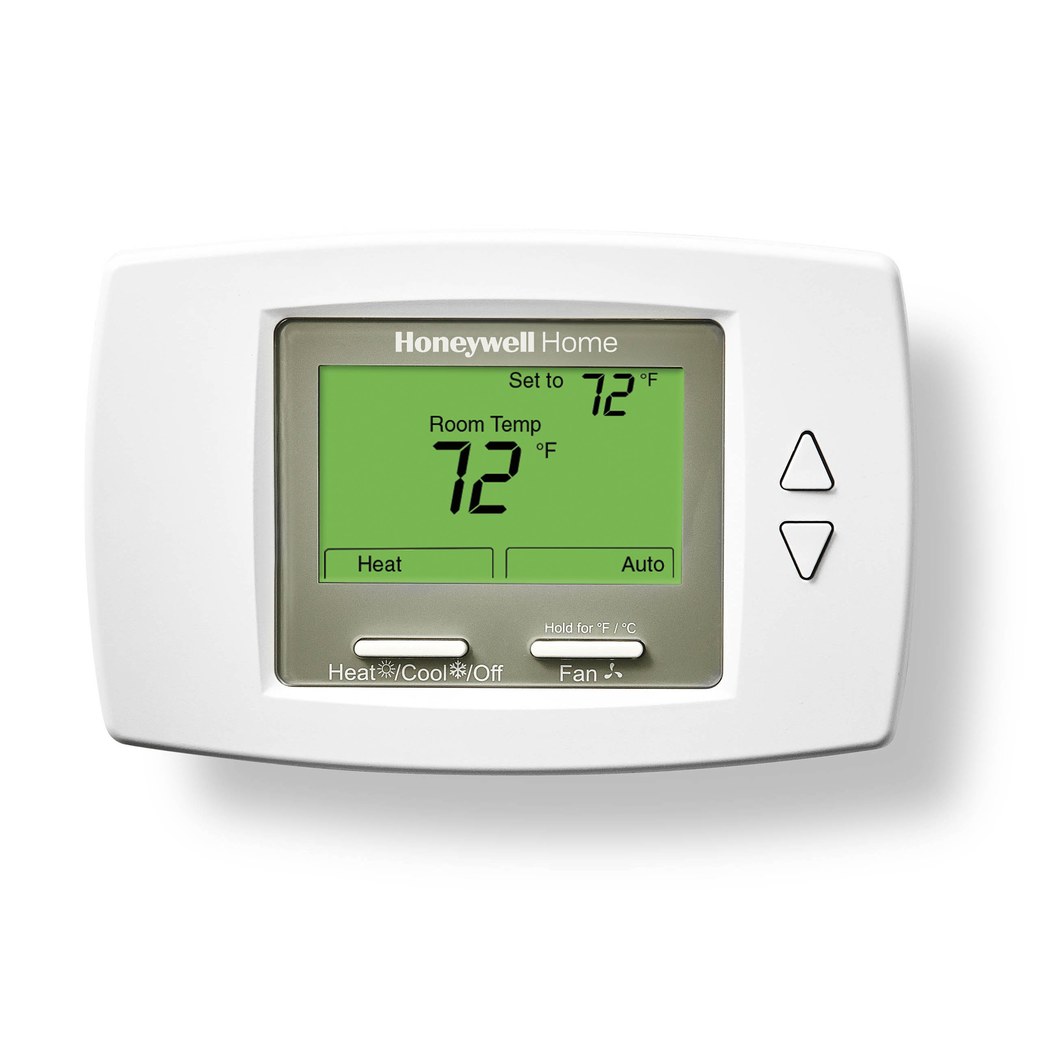

SuitePRO Digital Fan Coil Thermostat

Applications Include Hotels, Condos, and School Classrooms

The TB6575A Digital Fan-Coil thermostat provides line and low voltage for on and off control for various fan-coil units in residential and commercial applications.

• Simple, intuitive user interface and ease of installation
• Attractive modern styling ideal for hotels and condos
• Digital display of ambient operating temperature, set point, mode icons when the cooling or heating relays operate, when energy savings mode is active, and fan status
• Four buttons allow manual control of system operation, fan speed, and temperature set point adjustment
• VersaSpeed Fan Ramp Algorithm automatically adjusts Low, Medium, and High fan speeds
• Activity sensing algorithm sets back thermostat to economy mode
• External energy savings input from dry contact such as time switch, occupancy sensor, or hotel cardkey overrides comfort set point with selectable setback heating or cooling set points
• Energy savings input configurable as a normally open or normally closed dry contact
• Proportional plus integral (P+I) control algorithm for precision temperature regulation
• Adjustable deadband, in auto changeover mode, for heat and cool control
• Adjustable maximum heating and minimum cooling set point limits
• EEPROM permanently retains user settings, including set points, during power loss (no batteries required)
• Capability to display temperature sensor failure for easier troubleshooting
• Horizontal mounting on 2" x 4" single gang electrical box or vertical mounting 2" x 4" or 4" x 4" junction box with optional wall plate
• Color: Premier White
