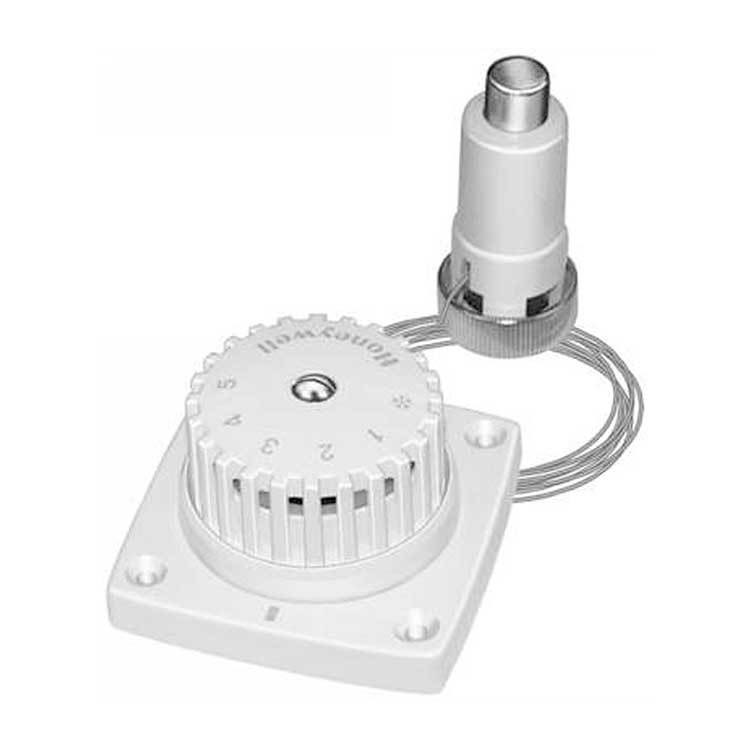

Temperature Sensor Remote Wall Mount 43 to 79 Degrees Fahrenheit

Allow automatic temperature control in two-pipe steam or hot water systems for free standing radiators, convectors, and other heating units with standard capacity requirements. Provide comfort and energy savings at affordable prices.

• Continually monitor and adjust room temperature for consistent comfort and relief from under-heating and overheating
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems
• Nickel-plated brass casted body with working parts in cartridge insert for ease of service
• Sensor, setpoint dial and valve actuator components may be integral or connected by capillary tubes
• Require no electrical connections
• All working parts are replaceable using service tool (MT100C1016) while valve remains in service, in-line, under pressure
• Valves normally open without control mounted
• Valves may also be used with MV100 electric zone valve actuator
• 3-5/16 in H
• Remote setpoint
• 1-3/16 in Dia collar
• 78 in L capillary
• Industrial grade plastic with low thermal conductivity body material
• A control with combined remote setpoint and sensor mounted on wall, connected by a capillary tube to an actuator, which is mounted on the valve body application
