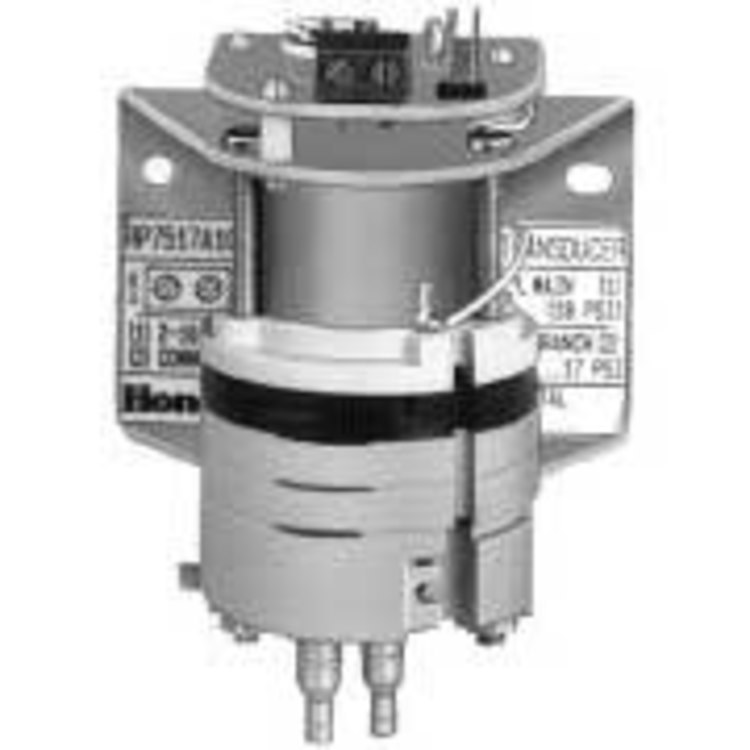

Electronic-Pneumatic Transducers are used in electronic-pneumatic control systems to convert a proportional electric output signal from a controller into a direct-acting, proportional pneumatic signal.
- Screw mounting or snap rail, factory calibrated
- Dual barb fittings
- High accuracy
- 30 psi maximum safe operating pressure
- Screw terminals for 14 to 22 ga wire connection
- 5 to 95% RH operating humidity
- Powered by control signal
- Dual barb-fittings for 1/4 in or 5/32 in OD plastic tubing connection
- 0.45 scfm capacity
- 16 psi with 18 psi main pressure at 12 VDC nominal high end
- 0.5 psi at 0 VDC nominal low end
- 0.025 scfm airflow usage
- Without internal power supply for panel mounting (2 wire)
