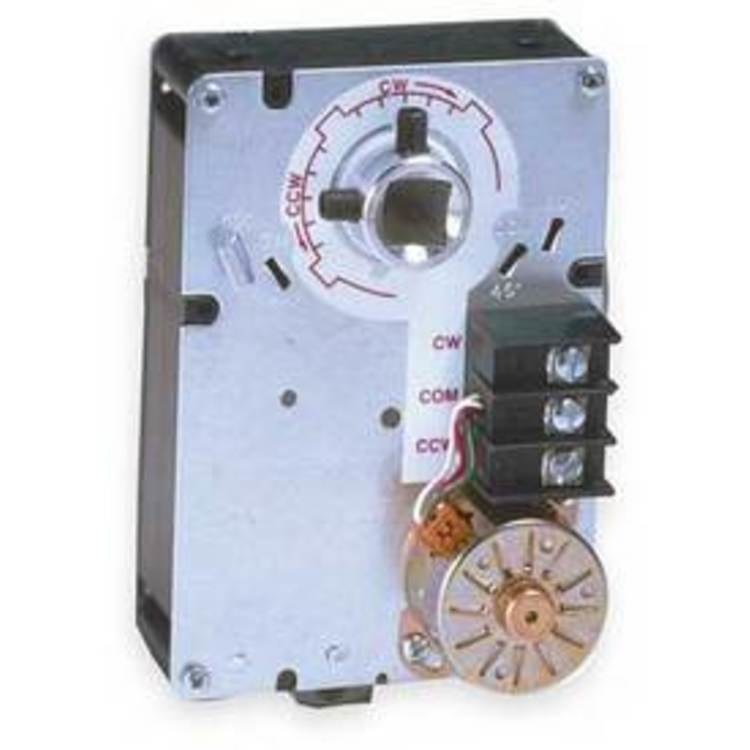

Damper Actuator

Honeywell ML6174B2019/U

Damper Actuator Floating SPDT with 70LB Torque Non-Spring Return Direct Coupled 24 Volt 50/60 Hertz

Authorized Distributor

Honeywell

Specification Sheet

50/60 Hz frequency
Screw terminals electrical connections
5 to 95% RH operating humidity, non-condensing
2.4 VA driving power consumption
20 to 130 deg F shipping and storage temperature
20 to 125 deg F ambient temperature
Environmental, electrical or ingress protection rating: NEMA 1
No internal auxiliary switch
Maximum noise rating: Driving - 45 dB(A) at 1 m
90 deg stroke
3/8 to 1/2 in square or round shaft
Control signal: Floating, SPDT, ON/OFF
Additional torque ratings: Maximum stall - 130 lb-in
Rotation to open: By wiring
Rotational stroke adjustment: Mechanically limited at 45 or 60 deg in CW or CCW directions

Brand	Honeywell
Product Type	Floating SPDT with 70LB Torque
Style	Non-Spring Return
Mounting	Direct Coupled
Voltage	24V
Frequency	50/60Hz
Stroke Length	90DEG
Application	HVAC Systems
Shipping Weight	3.000 LBS
