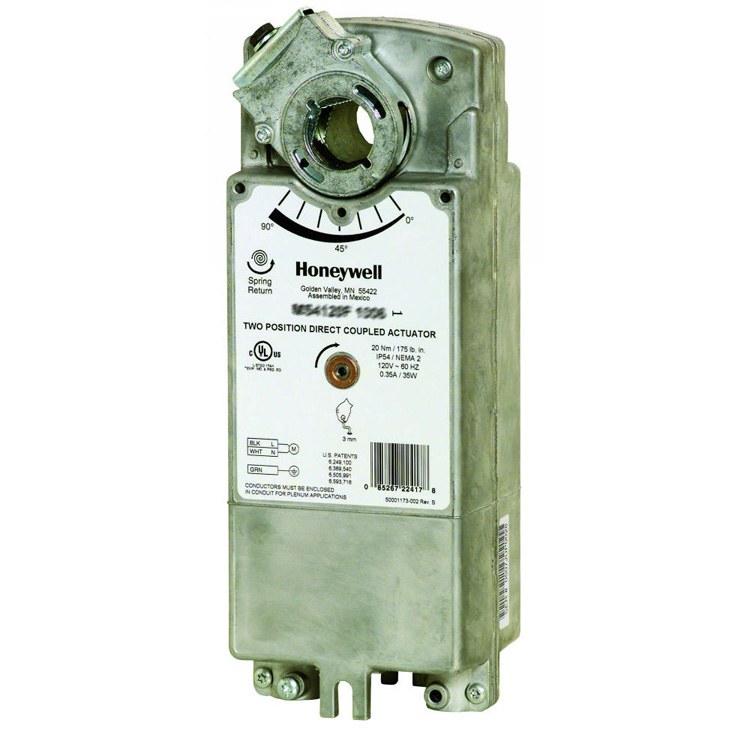

Honeywell 175 lb-in torque, spring return, direct-coupled, 24 VAC actuator accepts two-position (SPST) control with an integral junction box. Reliably operates in smoke control systems requiring UL555S ratings up to 350 deg F.
- (2) Integral 3/8 in flexible conduit connections
- 50/60 Hz frequency
- 40 in PTFE-jacketed cable electrical connections
- 5 to 95% RH operating humidity, non-condensing
- 45 VA driving, 10 VA holding power consumption
- -40 to 140 deg F shipping and storage temperature
- -40 to 130 deg F ambient temperature
- Switch ratings: 250 VAC, 5 A resistive
- Environmental, electrical or ingress protection rating: NEMA 2, IP54
- (2) Internal auxiliary switch
- Maximum noise rating: Driving - 70 dB(A) at 1 m, holding - 20 dB(A) at 1 m (no audible noise)
- 95+/-3 deg stroke
- 3/8 to 1.06 in round or 3/8 to 11/16 in square shaft
- Control signal: 2-position, SPST
- Additional torque ratings: Maximum stall - 425 lb-in, minimum driving at 350 deg F - 175 lb-in
