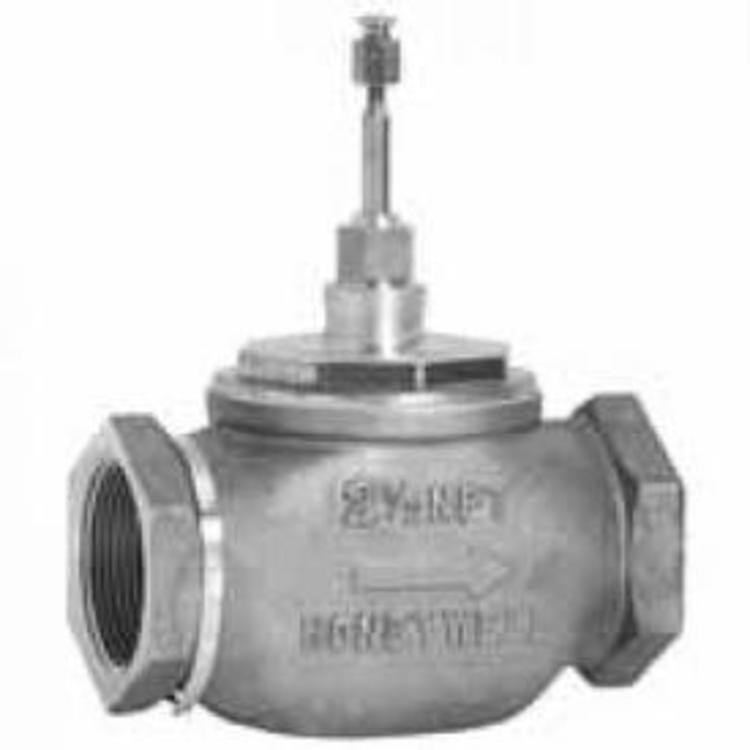

The V5011 Series Single-Seated, Two-Way, Straight-Through Valves provide proportional control of steam and hot or chilled water in HVAC systems requiring tight shutoff.
- High pressure steam models with stainless steel trim
- Spring-loaded, self-adjusting packing
- Stainless steel stem prevents corrosion
- Valve designs provide equal percentage characteristics of flow for close control of water and linear characteristic of flow for close control of steam or chilled water
- Valves utilize direct mounting, electric or pneumatic linear valve actuators, Q5001 linkage with modutrol motor or Q5020/Q5022A linkages with direct coupled actuators to operate the valve
- Controlled fluid: Chilled or hot water with up to 50% glycol or steam, not for use with fuels
- Bonnet size: 1-3/8 in
- Used with: Q5001/Modutrol IV Motor
- MP953
- Q5020/DCA
- ML6984/ML7984
- ML6420,21A,25
- ML7420/ML7421A/ML7425 actuators
- Static pressure rating: Meets ANSI 150 standard
- Stem travel: 3/4 in
