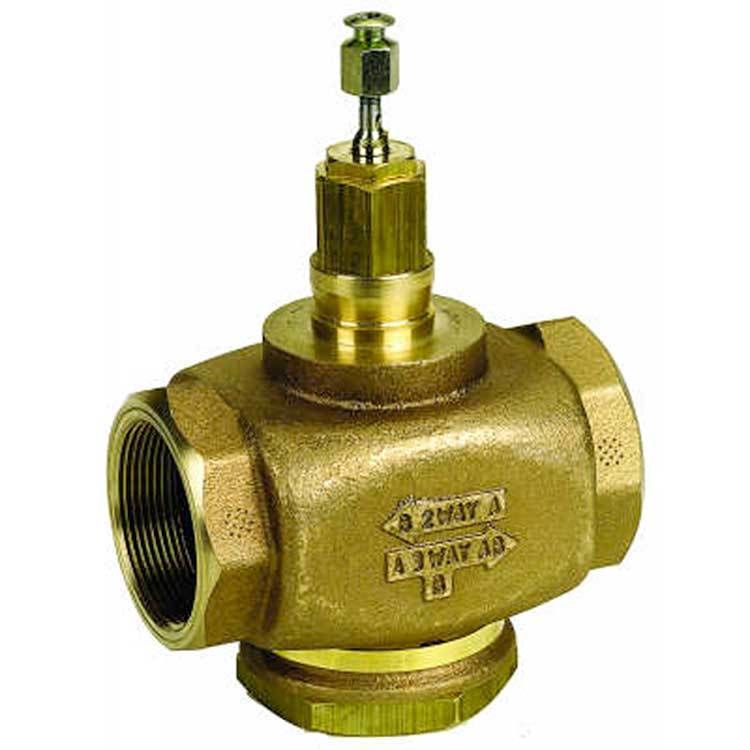

Globe Valve 2-Way 1-1/2 Inch Female Red Brass 240 Pounds per Square Inch

The V5011N is a two-way threaded globe valve for control of steam, water, and glycol solutions (up to 50 percent concentration) in heating or cooling HVAC applications. These valves are used in two-position and modulating control systems. The valve is not suitable for combustible gas service.

• High pressure steam models with stainless steel trim
• Spring-loaded, self-adjusting packing
• Stainless steel stem prevents corrosion
• Valve designs provide equal percentage characteristics of flow for close control of water, and linear characteristic of flow for close control of steam or chilled water
• Valves utilize direct mounting, electric or pneumatic linear valve actuators, Q5001 linkage with Modutrol Motor or Q5020/Q5022A linkages with direct coupled rotary actuators to operate the valve
• Not suitable for combustible gases
• Used with: Q5001/Modutrol IV Motor
• MP953
• Q5020/DCA
• ML6984/ML7984
• ML6420,21A,25
• ML7420/ML7421A/ML7425 actuators
• Bonnet size: 1-3/8 in
• For quiet water service 20 psid max differential pressure ratings (close-off)
• Capacity: 29 Cv
