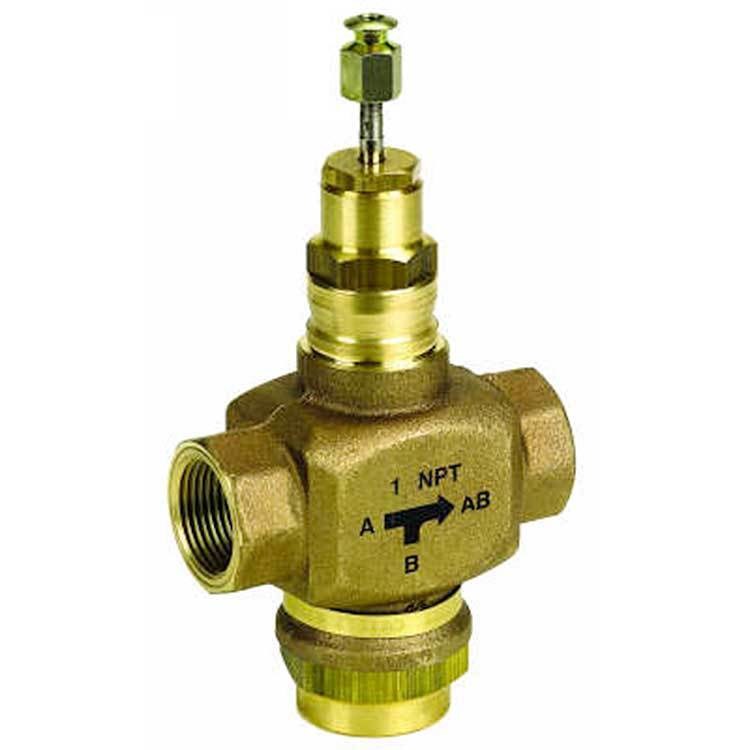

Globe Valve

Honeywell V5013N1071/U

Globe Valve 3-Way 1-1/4 Inch Female Red Brass 240 Pounds per Square Inch

Authorized Distributor

Account required to order

The V5013N is a three-way threaded globe valve that controls hot water, cold water and glycol solutions (up to 50 percent concentration), in heating or cooling HVAC applications. The valves direct flow from one or two inlets to a common outlet.

  • Red brass body with NPT-threaded connections
  • Stainless steel stem and brass plug
  • Low seat leakage rating, < 0.05%
  • Spring-loaded, self adjusting packing
  • 50:1 range ability per VDI/VDE 2173
  • Constant total flow throughout full stem travel
  • Accurate positioning to ensure state-of-the-art temperature control
  • Sizes range from 1/2 to 2 in
  • Valves utilize direct mounting, electric or pneumatic valve actuators
  • Repack and rebuild kits available for field servicing
  • Not suitable for combustible gases
  • 217 psi at 248 deg F

BrandHoneywell
Product Type3-Way
Size1-1/4IN
End ConnectionFemale
MaterialRed Brass
Pressure240PSI
Temperature36-248DEG F
ApplicationHeating or Cooling Systems
Shipping Weight6.000 LBS
