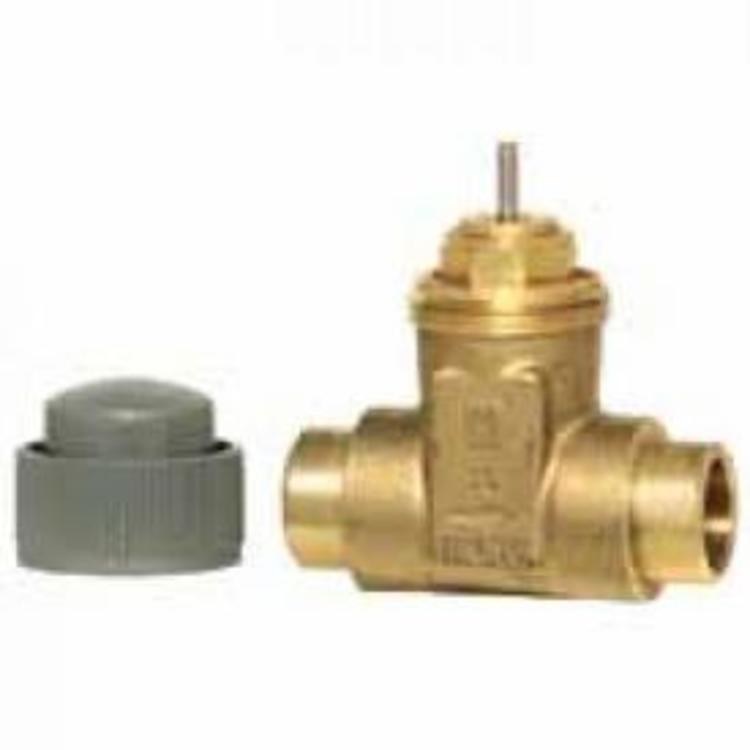

Globe Valve 2 Way 3/4" Brass Sweat 2.9Cv

Cartridge Globe Valves control hot and chilled water for VAV terminals fan coil units, small re-heaters and re-coolers in temperature controllers.

• Long stroke allows wider range of control
• Soft valve seat provides low leakage rate
• Inserts for 1/2 in and 3/4 in valves are changeable without draining valve when used with an insert replacement tool
• Threaded plastic cover/manual handle allows manual operation
• Easily installed in areas where space is limited
• Used with M6410A1029/M7410F1000/M6435A1004/M7435F1001/MP958 cartridge globe valve actuator
• Brass seat/ cartridge/ plug/ ball/ disc and stainless steel stem
• 1/4 in stem travel
• Equal percentage flow characteristic
• Chilled or hot water with up to 50% glycol controlled fluid, not for use with steam or fuels
• Stem down to close valve action
• 36 to 230 deg F ambient temperature
