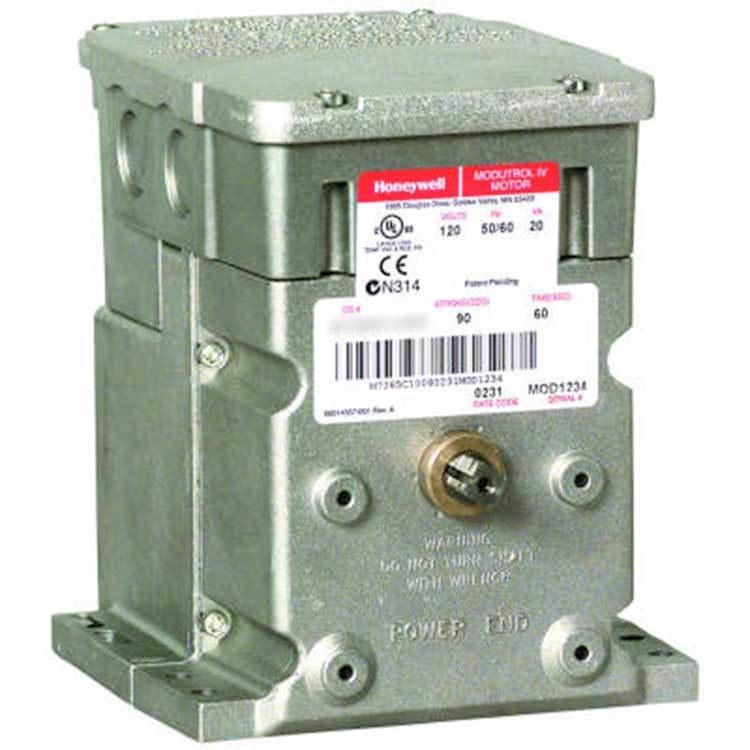

Damper Actuator

Honeywell M4185B1009/U

Damper Actuator Modutrol IV 2 Position SPST Spring Return Floor 6-7/16 x 5-1/2 x 8-3/4 Inch 120 Volt 50/60 Hertz

Authorized Distributor

Honeywell

Installation Manual

Specification Sheet

Wiring box provides NEMA 3 weather protection
Integral spring return returns motor to normal position when power is interrupted
Spring return motors can operate valve linkages form power end or auxiliary end shafts for normally closed or normally open valve applications
All models have dual shafts (slotted and tapped on both ends)
All models have auxiliary switch cams
Fixed torque throughout the entire voltage range
Motors are designed for either normally open or normally closed valves and dampers
Normally closed spring return
Normally open/normally closed valves and dampers

Brand	Honeywell
Product Type	2 Position SPST
Style	Spring Return
Mounting	Floor
Size	6-7/16x5-1/2x8-3/4IN
Voltage	120V
Frequency	50/60Hz
Torque Rating	60LB/IN
Temperature	-40 to 150DEG F
Stroke Length	Adjustable 90-160DEG
Application	Electric
Length	8-3/4IN
Width	5-1/2IN
Height	6-7/16IN
Shipping Weight	9.175 LBS
